Default 2011 Accord in dash navigation + bluetooth aftermarket

I recently bought a Mobile stations (NAV, GPS, TV, .etc.)
The nav is working (except I don't know how to change that dam language from Chinese to English) but overall things are good.

The only problem I am having is that can't get my audio out.

If I play DVD movie, no sound.

Bluetooth connect fine, my voice goes through mic, other party hear but in my car I have no sound.

I took some pictures, I think I am missing a connection. because thats the only wire left which needs to go somewhere and I have no clue, where to hook that wire up.

The factory radio works good, sound is ok from factory radio as well. but no sound from dvd movie or bluetooth. \

the navigation audio works fine.

Any help really appreciated..

thanks,
This ad is not displayed to registered members.
Register your free account today and become a member on Honda Accord Forum!
Attached Images

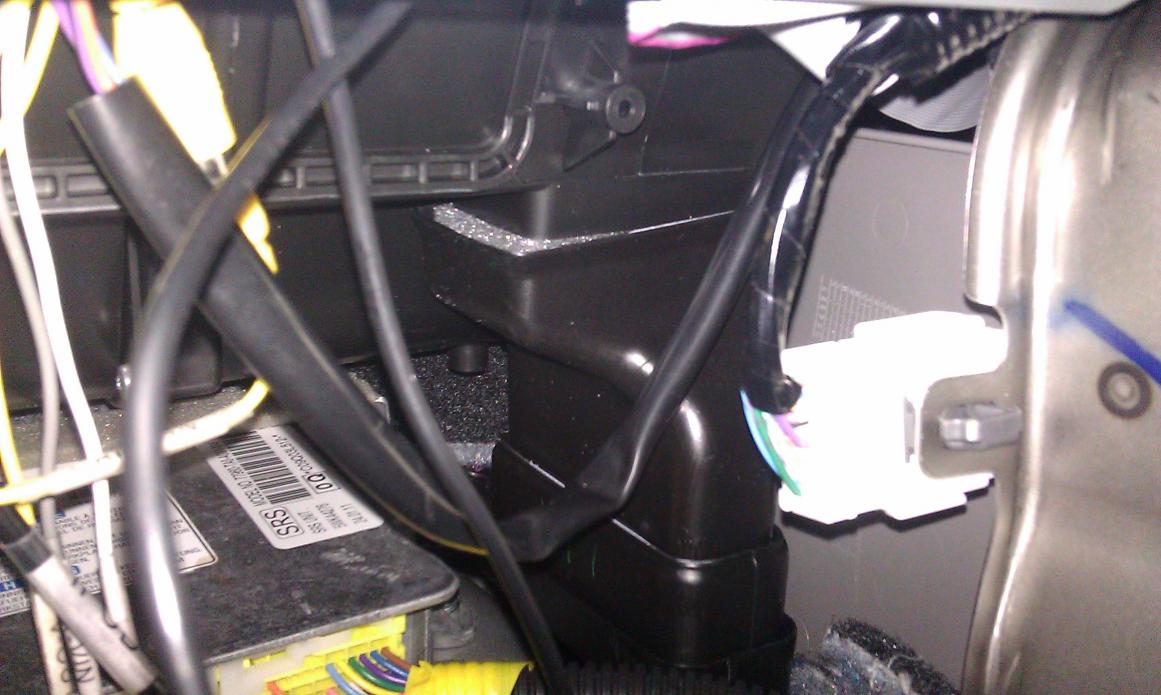

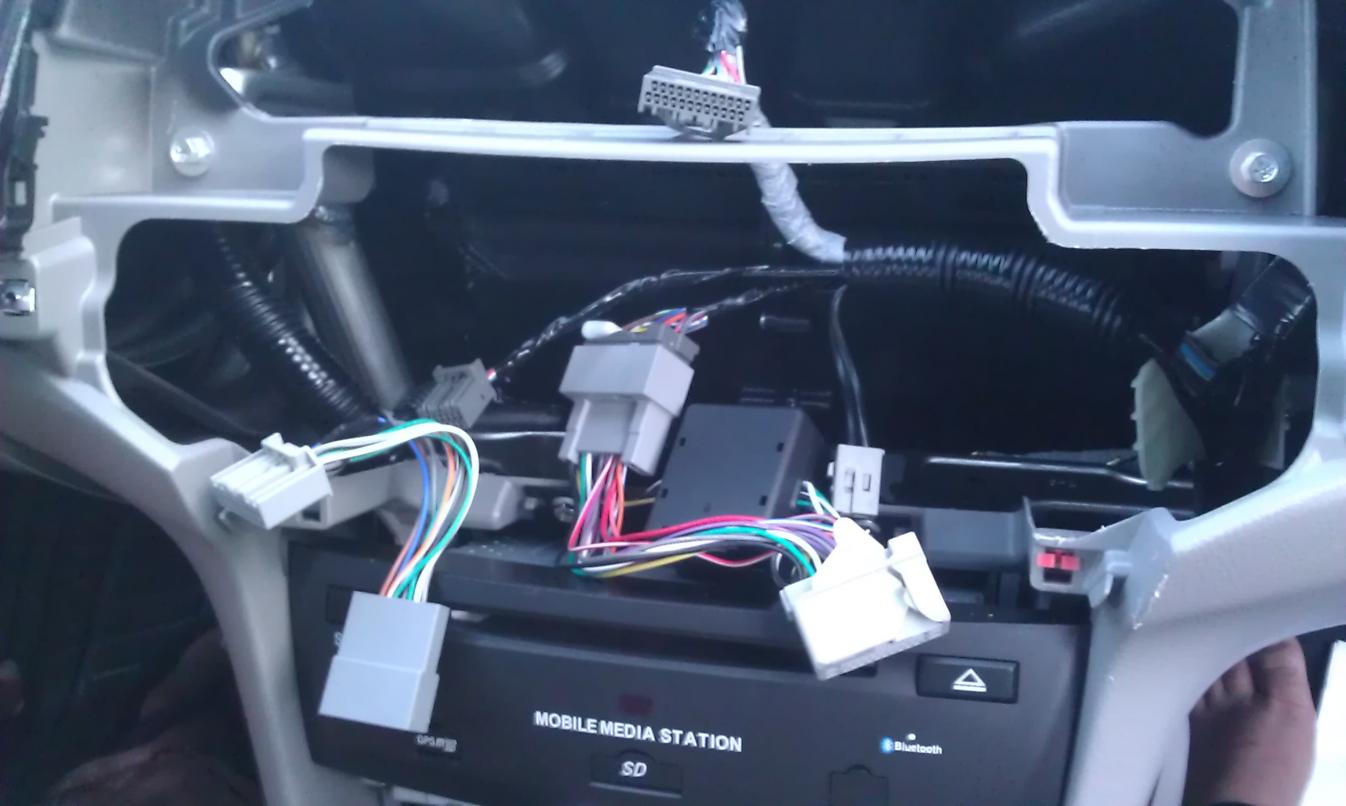

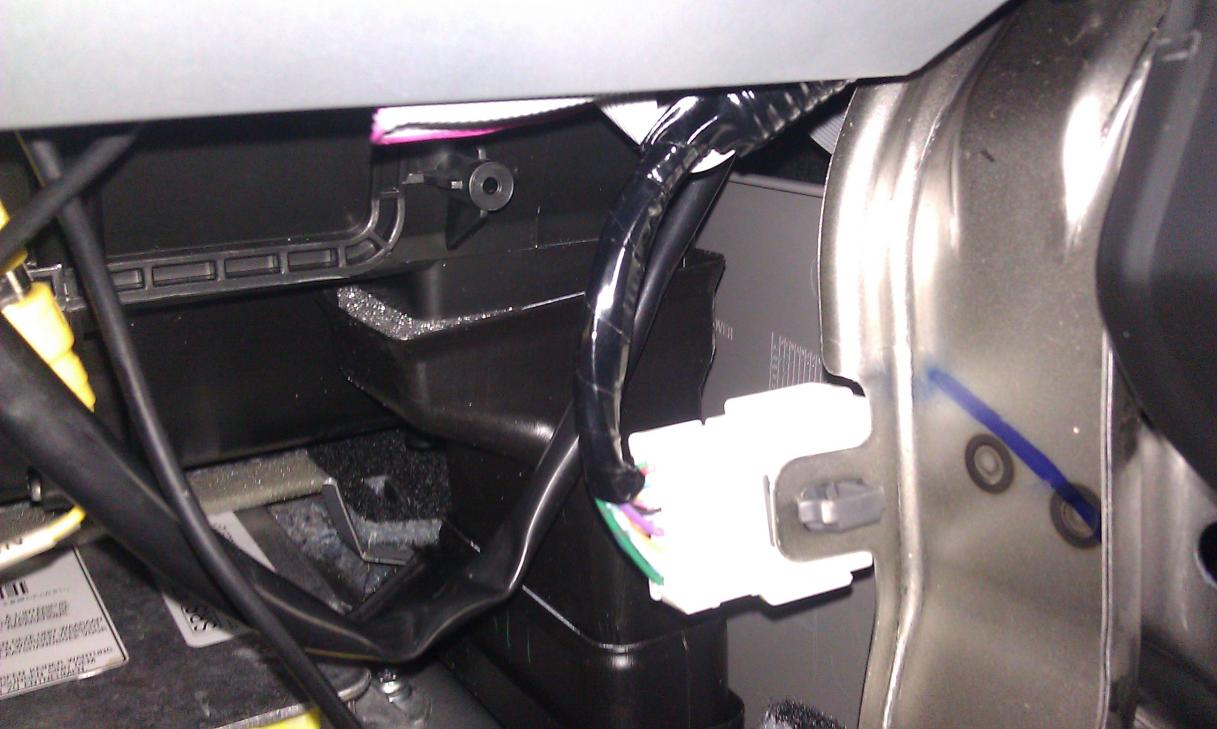

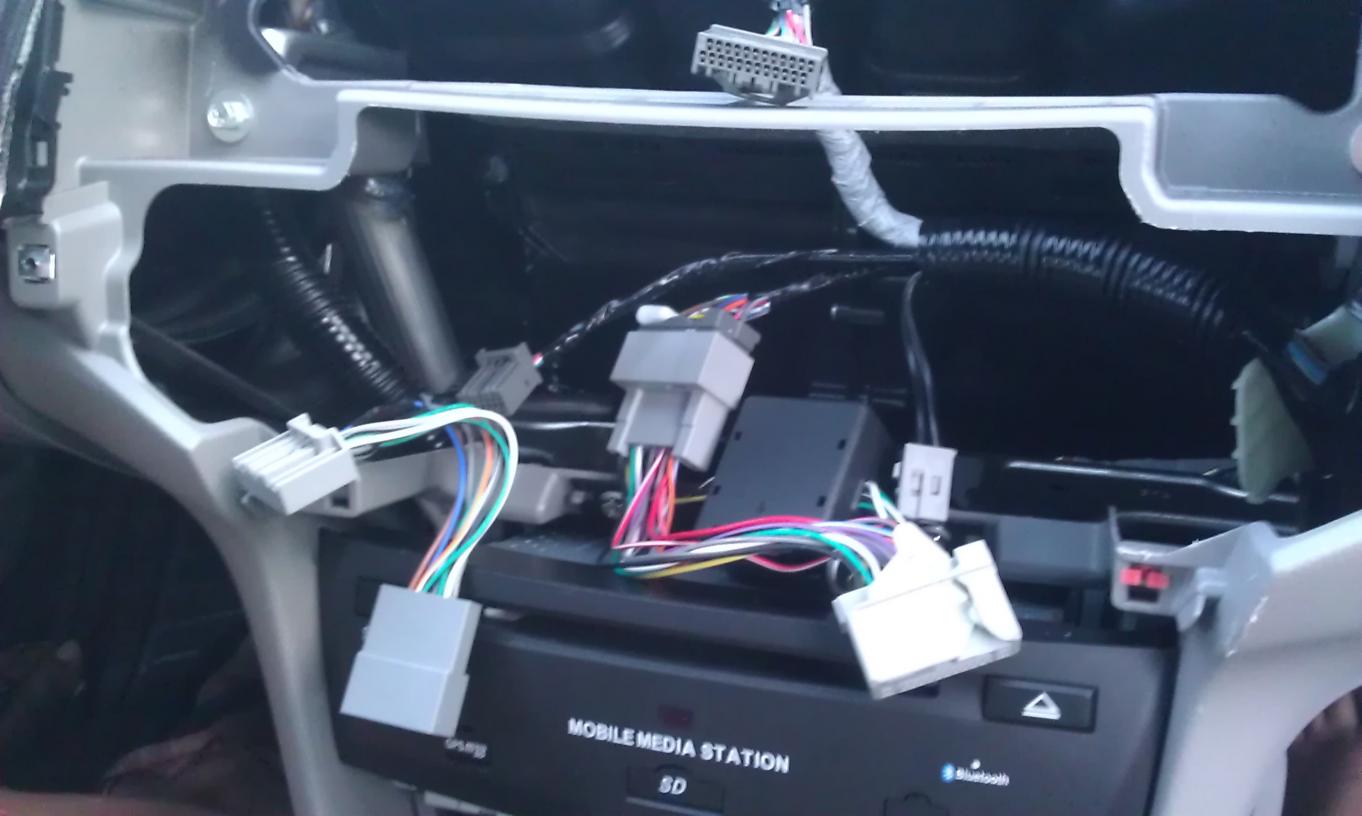

File Type: jpg IMAG0082.jpg (83.1 KB, 38 views)
File Type: jpg IMAG0083.jpg (82.1 KB, 24 views)
File Type: jpg IMAG0084.jpg (87.8 KB, 21 views)
File Type: jpg IMAG0085.jpg (93.4 KB, 20 views)
File Type: jpg IMAG0086.jpg (94.9 KB, 22 views)
Reply With Quote
  #2
Old 06-30-2011, 08:36 PM
Newest Of Newbies

Join Date: Jun 2011
Posts: 34
Default

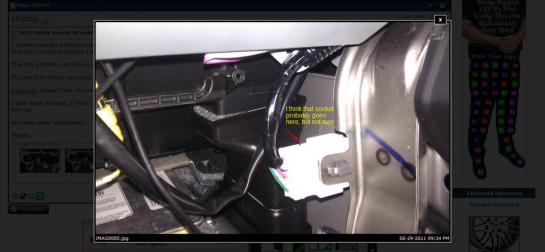

check these two images as well.

Both of these photos are behind factory stereo and double DIN.

When I try calling from my cell phone which is connected with car bluetooth, I hear the beep comes out from car speakers (its continues beep, like not turn off and keep continues until either the call ends or I turn the factory radio ON.

Factory radio work good and sound is good as well.

I think I am either missing to connect the wire or something like that.

please help.
Attached Images

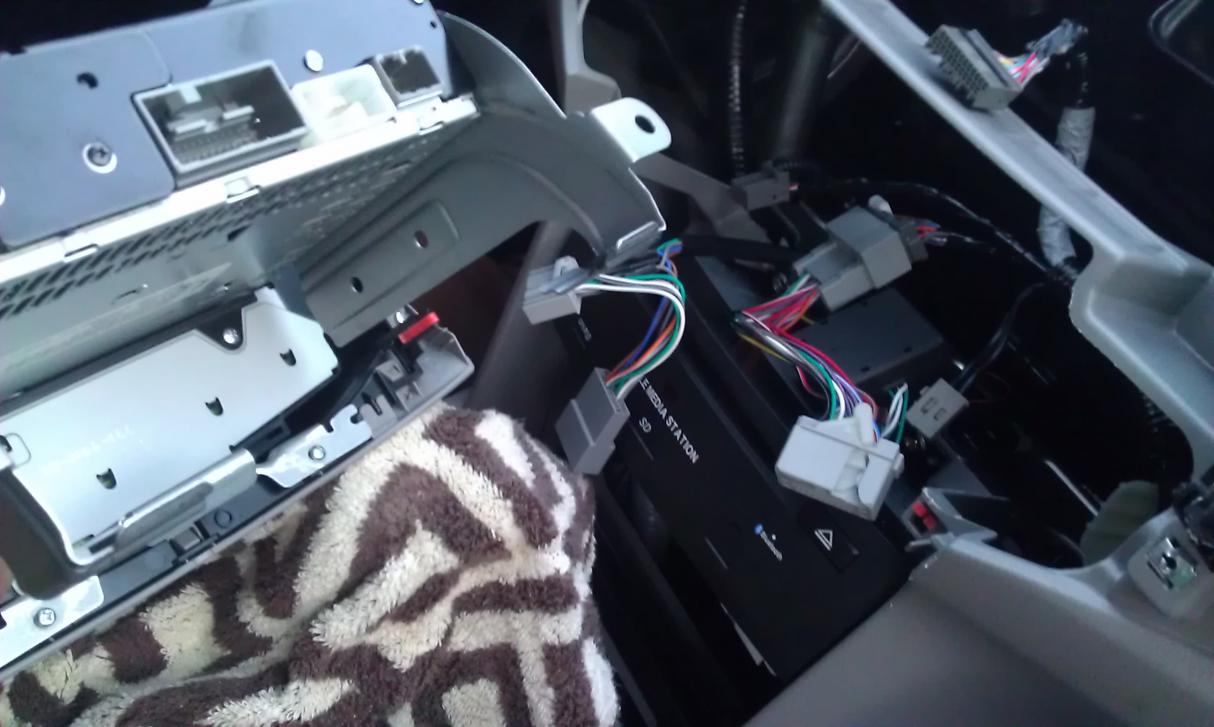

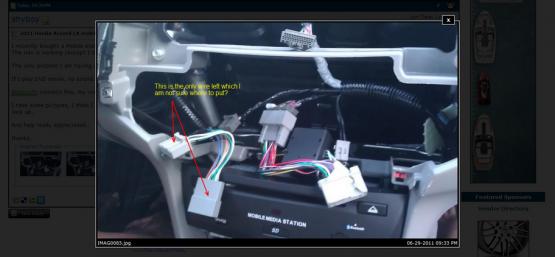

File Type: jpg 1309397950137.jpg (20.5 KB, 21 views)
File Type: jpg 1309398188820.jpg (20.2 KB, 15 views)
Reply With Quote
  #3
Old 07-01-2011, 12:21 AM
keep_hope_alive's Avatar
Super Moderator

Join Date: Dec 2009
Location: Quad Cities, IL
Posts: 2,737
Default

sorry man, it's hard to diagnose those units since there is virtually no documentation or support on them. they are buyer beware and most have issues. that unit should cost around $1500-2000 to be done right.

if you are going through the factory amplifier, then it's possible the new HU wire that ties to that is power antenna which turns off the factory amp when not in radio/tuner mode. depends how it's wired, which we don't know.

you need to share install diagrams that came with the unit.
__________________
2014 Honda Accord Sport CVT 2014 Build Log
2001 Honda Accord EXV6 J30A1 4AT
(Sold at 192kmi.) - Car Audio Build Log

Electrical basics and Car Audio (click links below):
Ohm's Law --- Wiring Harness Color Codes--- Wire Sizing Chart --- Fuses!!!
Reply With Quote
  #4
Old 07-01-2011, 08:40 AM
Newest Of Newbies

Join Date: Jun 2011
Posts: 34
Default

Thank you.

Where can I get the wiring diagram of Accord 2011 LX?

Maybe in my photos I can get that what is that white connection is for?

I am talking about the last two photos on my first post
Reply With Quote
  #5
Old 07-02-2011, 07:33 AM
Newest Of Newbies

Join Date: Jun 2011
Posts: 34
Default

can someone please tell me where is the AUX connector in 2011 accord?

on my first two post is that AUX connector?
if not how is it looks like.

I contacted the vendor and the last 2 wires he said will be connected to AUX connector.

Thanks,
Reply With Quote
  #6
Old 07-02-2011, 11:25 AM
Newest Of Newbies

Join Date: Jun 2011
Posts: 34
Default

http://www.flickr.com/x/t/0090009/gp/byteless/y8g654/

more detail pictures.
Reply With Quote
  #7
Old 07-02-2011, 11:32 AM
Newest Of Newbies

Join Date: Jun 2011
Posts: 34
Default

keep_hope_alive please help.
Reply With Quote
  #8
Old 07-09-2011, 05:25 AM
Newest Of Newbies

Join Date: Jun 2011
Posts: 34
Default

The dealer told me that these socket will go to beam line.

Can someone please tell me where the beamline is or how does it looks like?
Reply With Quote
  #9
Old 07-12-2011, 12:18 AM
keep_hope_alive's Avatar
Super Moderator

Join Date: Dec 2009
Location: Quad Cities, IL
Posts: 2,737
Default

Wiring diagrams are restricted to service manuals that aren't common for consumers. I have the owners manuals for the 2011 but wiring diagrams are tricky.

Beam line?

I'll have to do some research for the wiring configuration of the AUX connector, but what wires do you need to connect? What do they do?
__________________
2014 Honda Accord Sport CVT 2014 Build Log
2001 Honda Accord EXV6 J30A1 4AT
(Sold at 192kmi.) - Car Audio Build Log

Electrical basics and Car Audio (click links below):
Ohm's Law --- Wiring Harness Color Codes--- Wire Sizing Chart --- Fuses!!!
Reply With Quote
  #10
Old 07-13-2011, 10:06 AM
Newest Of Newbies

Join Date: Jun 2011
Posts: 34
Default

it should go to AUX..
Reply With Quote
