help me figure out where this connector goes

Thread Tools

Search this Thread

  #1
Old 05-14-2014, 10:05 AM
23hondaaccord's Avatar
Thread Starter
Join Date: May 2014
Posts: 5
Default help me figure out where this connector goes

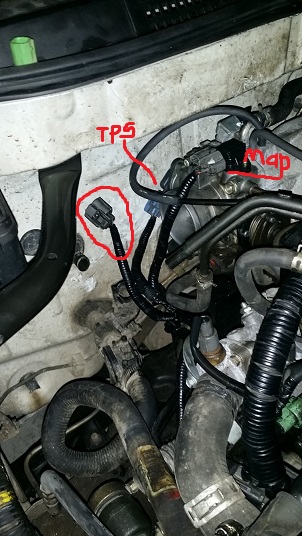

Area is by the throttle body. This is on a 99 Honda accord 2.3L with manual transmission. Its a three wire plug and its wire loomed along with the map connector and tps connector. Please help

Attached Thumbnails help me figure out where this connector goes-33vjn8o.jpg
Reply
  #2
Old 05-14-2014, 10:20 AM
live2rice's Avatar
Super Moderator
Join Date: Oct 2006
Location: Alaska
Posts: 8,725
Default
What color are the wires?

Reply
  #3
Old 05-14-2014, 10:21 AM
redbull-1's Avatar
Super Moderator
Join Date: Oct 2010
Location: United States
Posts: 7,083
Default
What are the wire colors?

Reply
  #4
Old 05-14-2014, 10:33 AM
redbull-1's Avatar
Super Moderator
Join Date: Oct 2010
Location: United States
Posts: 7,083
Default
On the engine harness, the 3P gray harness connectors are:

  • VSS: Blk/Yel, Blu/Wht, Blk
  • IAC Valve: Yel/Blk, Blk/Blu, Blk
  • Map sensor Yel/Red, Red/Grn, Grn/Wht

Reply
  #5
Old 05-14-2014, 11:20 AM
23hondaaccord's Avatar
Thread Starter
Join Date: May 2014
Posts: 5
Default
You just answered my question. Wire colors are blk/yel, blue/wht, blk. So that would make it the VSS plug. But I can't seem to locate where it goes plugged in. I'll do more looking. Thanks for your help

Reply
  #6
Old 05-14-2014, 11:26 AM
live2rice's Avatar
Super Moderator
Join Date: Oct 2006
Location: Alaska
Posts: 8,725
Default

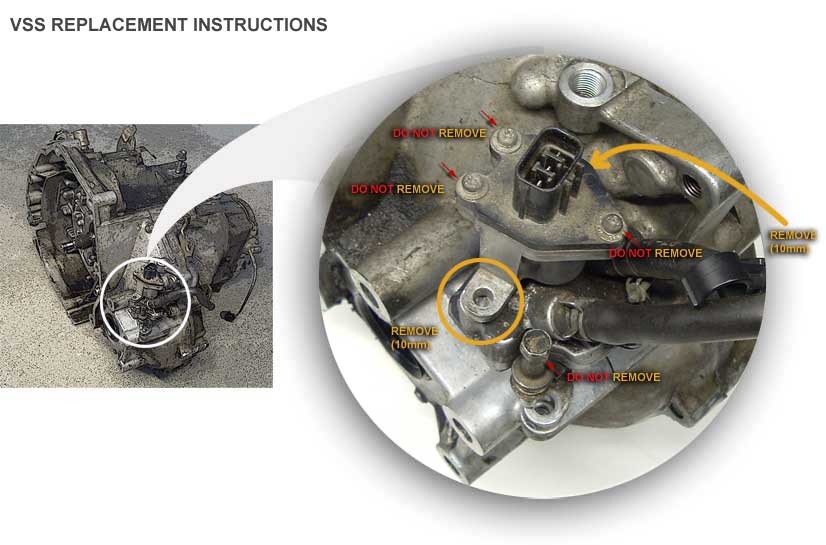

Its on the transmission, should be just below the throttle body.

Looks like this:

Attached Thumbnails help me figure out where this connector goes-vssimagelocate1.jpg
Reply
  #7
Old 05-14-2014, 11:26 AM
redbull-1's Avatar
Super Moderator
Join Date: Oct 2010
Location: United States
Posts: 7,083
Default

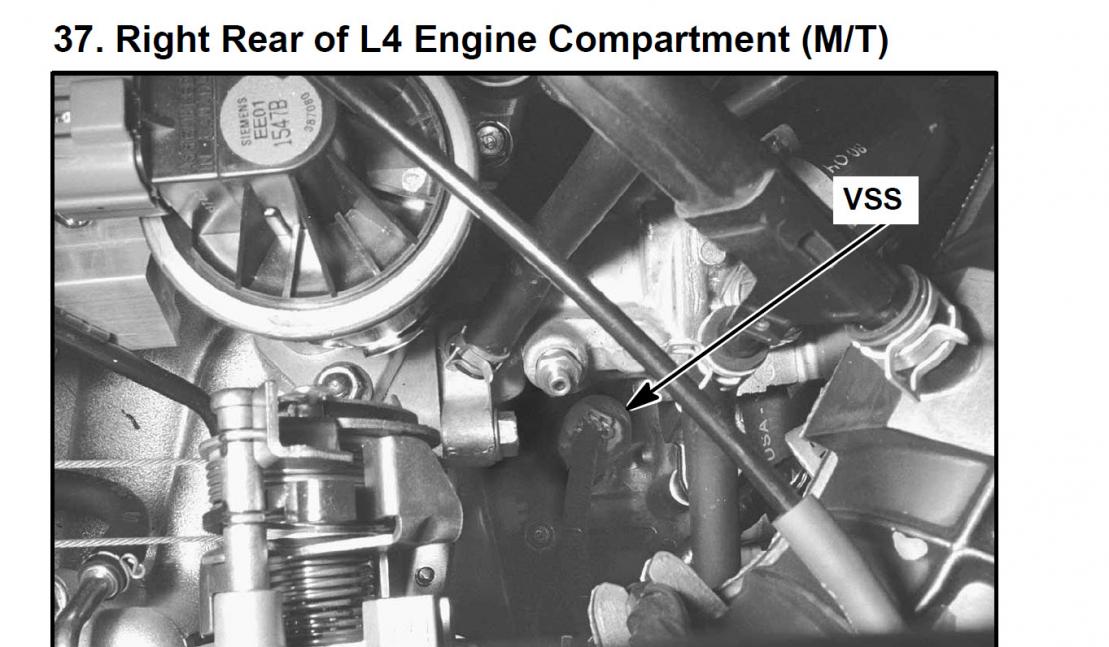

See attached pic. for VSS.

Attached Thumbnails help me figure out where this connector goes-vss.jpg
Reply
  #8
Old 05-14-2014, 11:28 AM
live2rice's Avatar
Super Moderator
Join Date: Oct 2006
Location: Alaska
Posts: 8,725
Default
I got nothing but time Redbull, I can play this game all day.

Reply
  #9
Old 05-14-2014, 11:33 AM
redbull-1's Avatar
Super Moderator
Join Date: Oct 2010
Location: United States
Posts: 7,083
Default
Originally Posted by live2rice
I got nothing but time Redbull, I can play this game all day.
I am not sure what you're talking about. Look at the posting times, I don't even see your posts when I am posting. I am just taking snapshots of images to prepare my posts before I'm posting.

But, whatever...

Reply
  #10
Old 05-14-2014, 11:35 AM
live2rice's Avatar
Super Moderator
Join Date: Oct 2006
Location: Alaska
Posts: 8,725
Default
I'm just giving you a hard time.

You did come through with the wire colors for the plugs in the area.

Reply
