Default 2006 Accord sedan SQ Audio build

This is a sound quality build I did for a friend that owns a 2006 honda accord sedan.
sedan. The goal of the system will be a stealth build where everything in the trunk will be out of sight.
Goals of build:
-Provide Great sound quality while sticking to budget
-stealthy trunk build and leave as much space possible for daily
use

The list of products
Pioneer DEH-80prs Headunit
Mosconi 6to8 DSP
Mosconi Gladen one 120.4 amp
Mosconi Gladen one 240.2 amp
Image Dynamics IDQ10D2 V.3 10" subwoofer
Illusion Audio Carbon C6 6.5" components

Name:  20130804_203112_zpse62918c9.jpg
Views: 155
Size:  60.1 KB
The pioneer 80prs was installed using Bestkits install in lower storage pocket.

Name:  20130716_151839_zps21d429bb.jpg
Views: 154
Size:  198.4 KB

Name:  20130716_162319_zps0032f08d.jpg
Views: 154
Size:  125.4 KB


Name:  20130717_150151_zps8569028e.jpg
Views: 159
Size:  98.5 KB

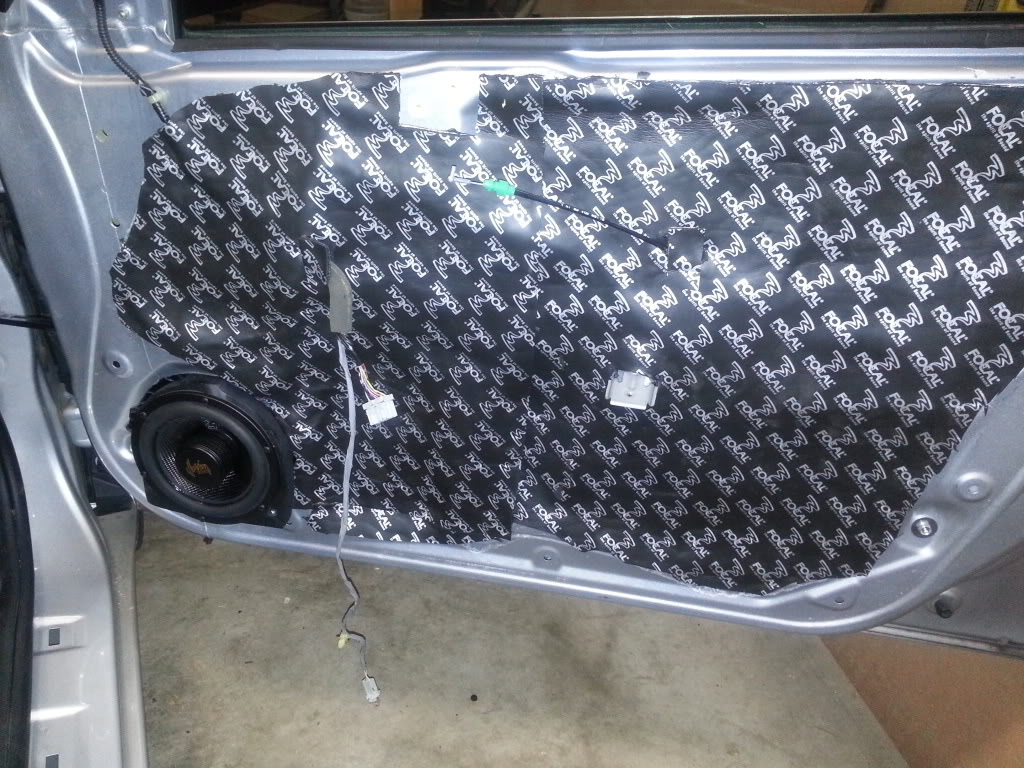

next moving onto the doors, removing the panels and treating sheet metal
with focal Bam XXXL and Blackhole tile.


Name:  20130717_153838_zpsebea6211.jpg
Views: 222
Size:  96.6 KB


Name:  20130717_155418_zps981fb6e5.jpg
Views: 148
Size:  96.5 KB

Name:  20130718_165935_zps920a2ef0.jpg
Views: 164
Size:  211.8 KB

Attached Images

Last edited by audioman79; 08-27-2013 at 07:14 PM.
  #2
Old 08-27-2013, 07:18 PM
Newest Of Newbies
Thread Starter
Join Date: Jun 2013
Posts: 15
Default

Next adapters

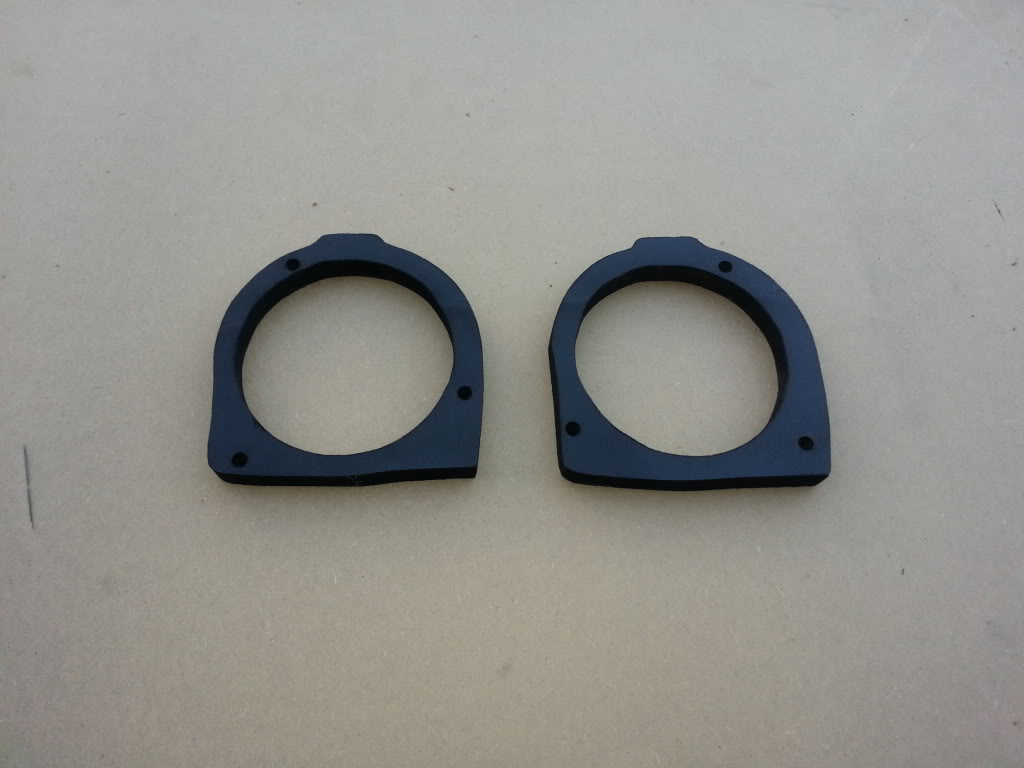

where made from 3/4" mdf for the front doors to mount the illusion audio c6 mids. Then adapters were sprayed with bed liner.


Name:  20130718_191434_zps33ae177f.jpg
Views: 208
Size:  49.7 KB

  #3
Old 08-27-2013, 07:19 PM
Newest Of Newbies
Thread Starter
Join Date: Jun 2013
Posts: 15
Default

Name:  20130719_220417_zps7400f029.jpg
Views: 147
Size:  214.9 KB

  #4
Old 08-27-2013, 07:20 PM
Newest Of Newbies
Thread Starter
Join Date: Jun 2013
Posts: 15
Default

Name:  20130719_220448_zpsbe0cb6cf.jpg
Views: 142
Size:  217.7 KB

  #5
Old 08-27-2013, 07:23 PM
Newest Of Newbies
Thread Starter
Join Date: Jun 2013
Posts: 15
Default

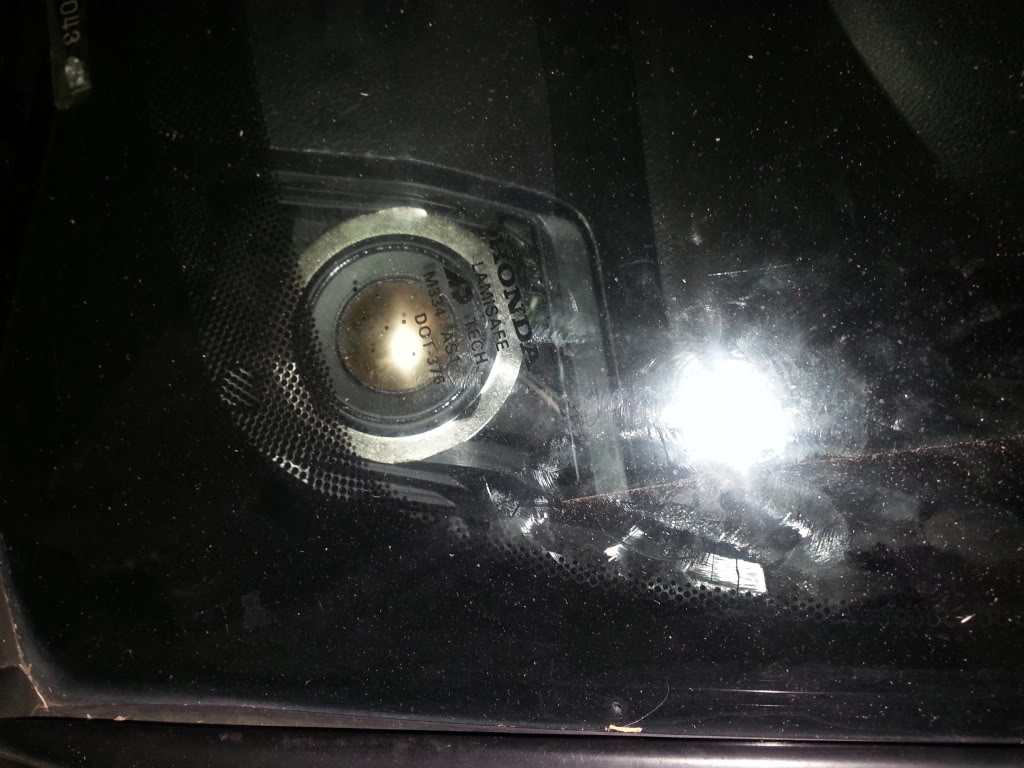

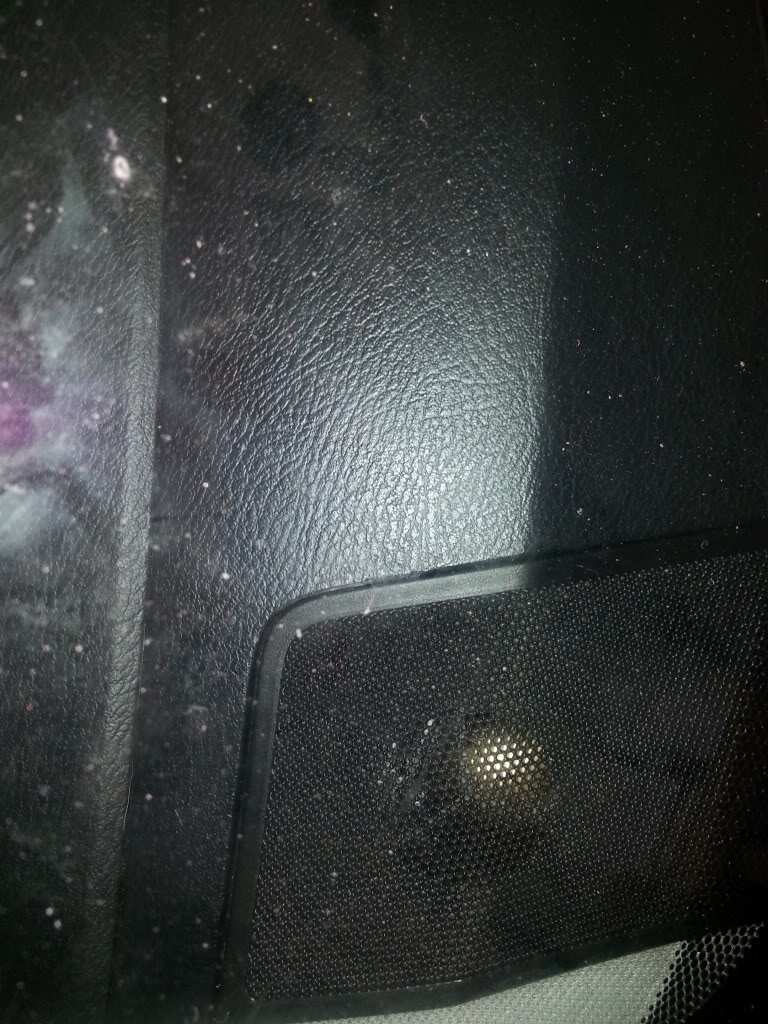

Next the tweeters were installed in factory location to have a stock appearance


Name:  20130717_185507_zpsf0990131.jpg
Views: 144
Size:  110.3 KB


Name:  20130718_124227_zpsf776bc4d.jpg
Views: 142
Size:  198.2 KB

  #6
Old 08-27-2013, 07:28 PM
Newest Of Newbies
Thread Starter
Join Date: Jun 2013
Posts: 15
Default

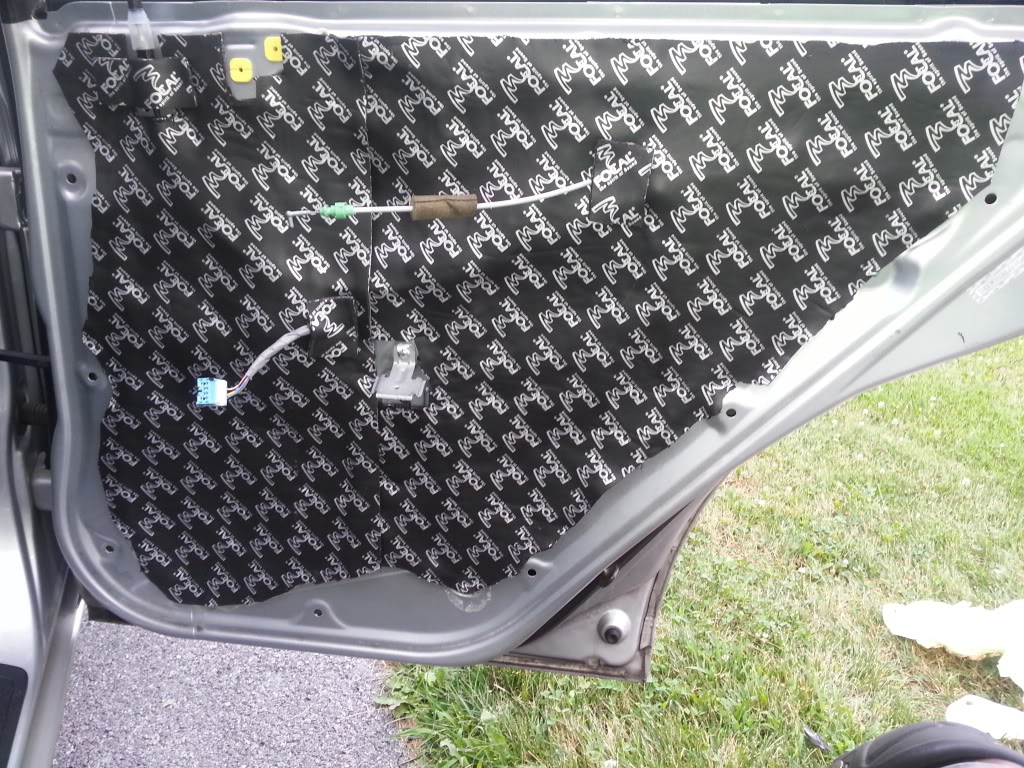

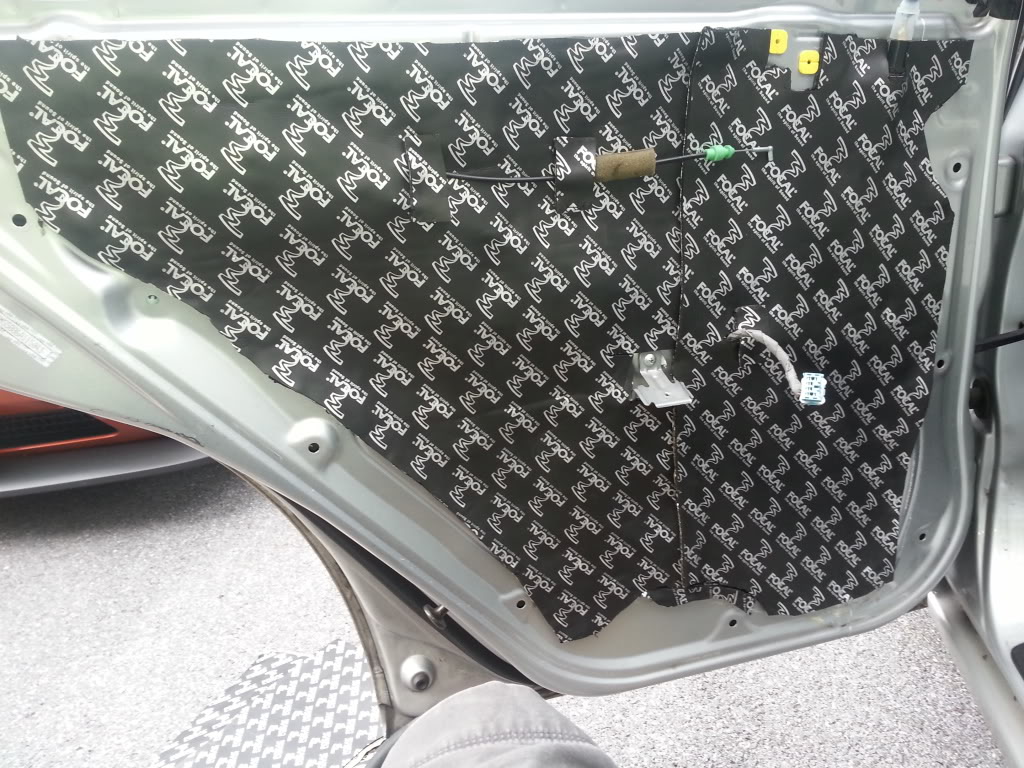

Moving on to the rear doors, they received the same treatment as the front doors


Name:  20130710_182233_zpsa4eb818a.jpg
Views: 145
Size:  213.5 KB


Name:  20130710_194132_zps4f8431a0.jpg
Views: 144
Size:  240.5 KB

  #7
Old 08-29-2013, 09:27 AM
Newest Of Newbies
Thread Starter
Join Date: Jun 2013
Posts: 15
Default

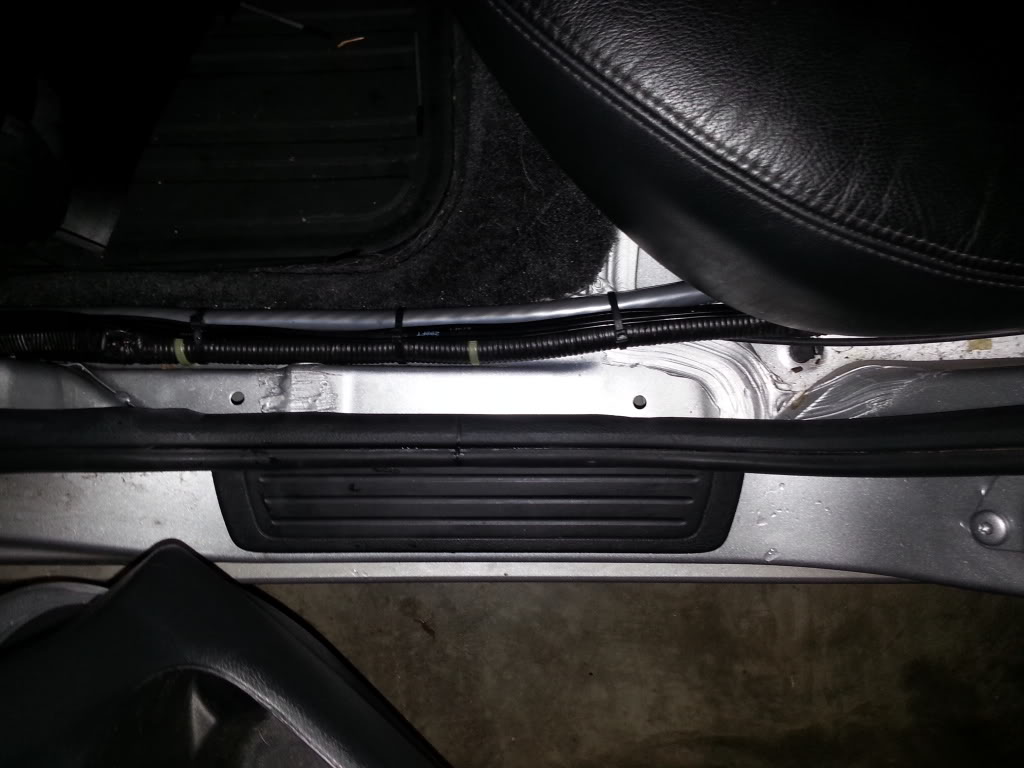

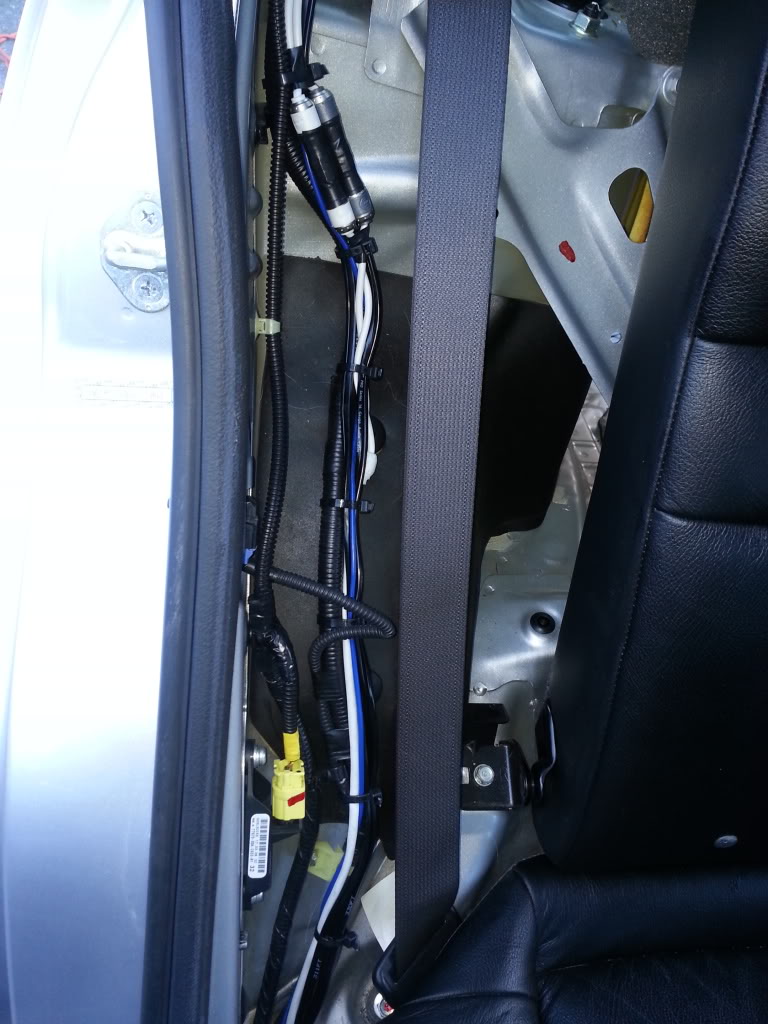

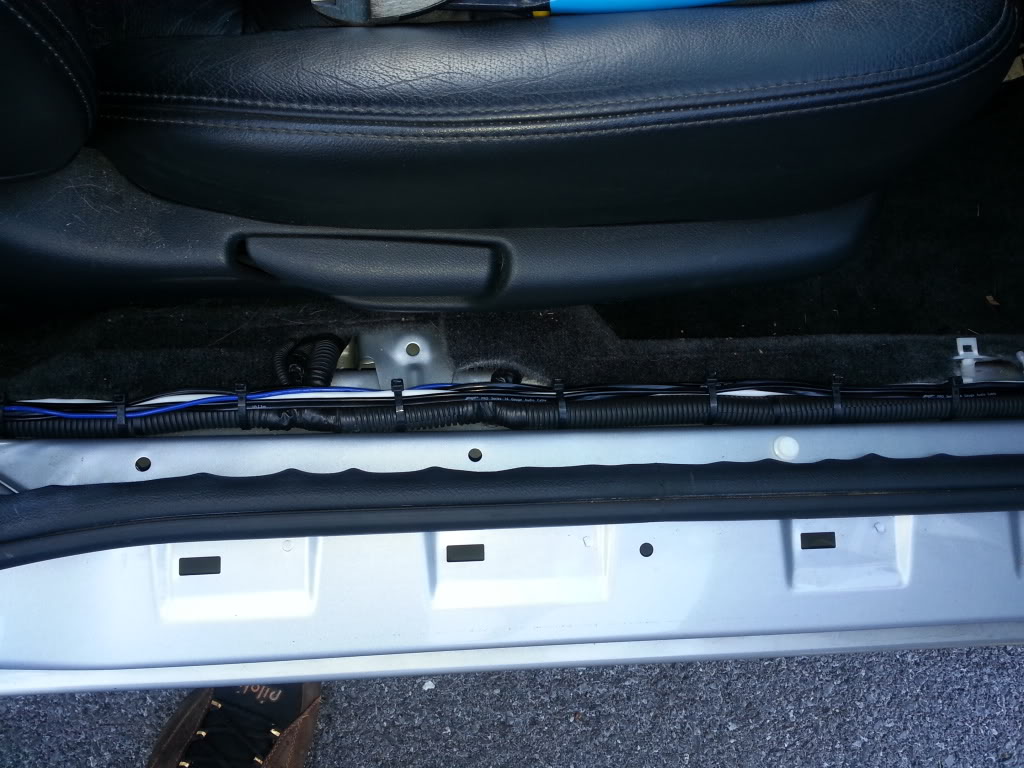

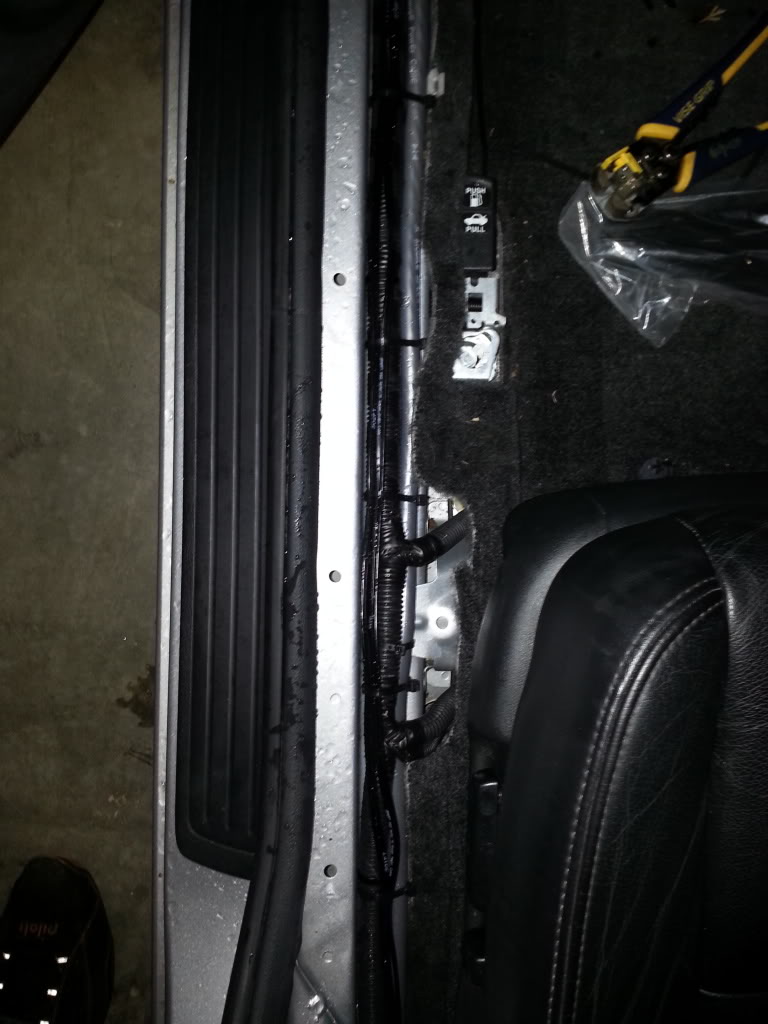

I ran 1/0 gauge power wire to power the system on the driver side and ran the signal wires down the passenger side.



Name:  20130728_220206_zps3f65da4c.jpg
Views: 218
Size:  91.8 KB

.Name:  20130728_220158_zpscce5e976.jpg
Views: 228
Size:  83.6 KB



Name:  20130728_175651_zps096ca270.jpg
Views: 148
Size:  122.2 KB


Name:  20130728_182205_zps8a9117f4.jpg
Views: 142
Size:  120.4 KB

  #8
Old 08-29-2013, 09:30 AM
Newest Of Newbies
Thread Starter
Join Date: Jun 2013
Posts: 15
Default

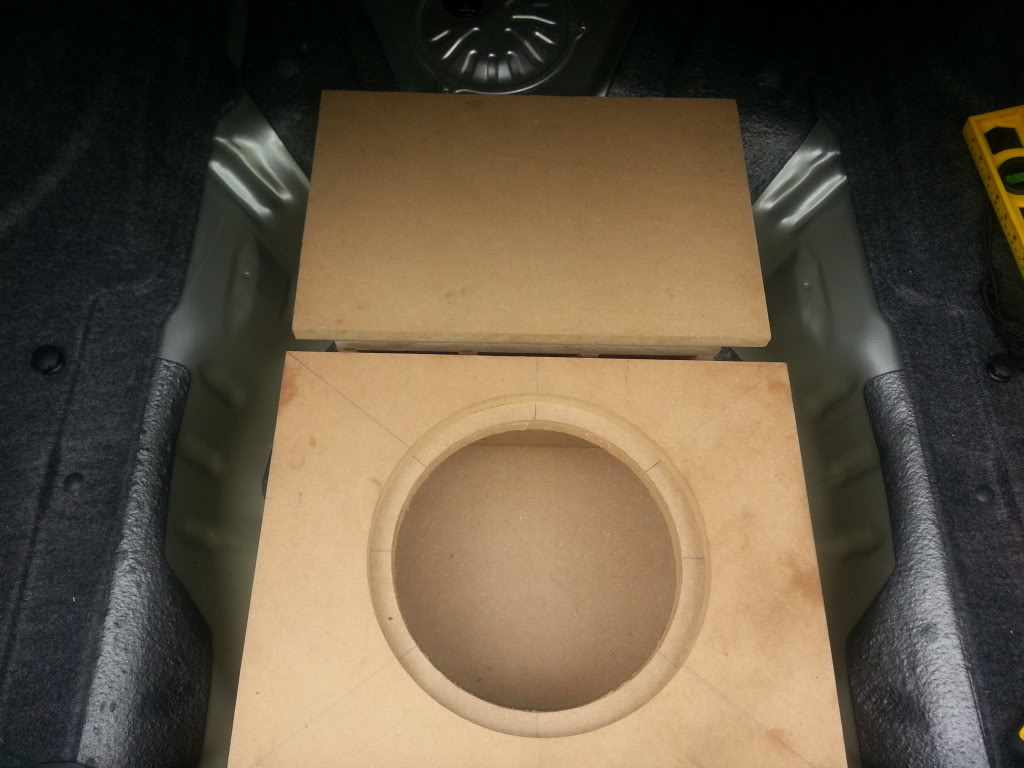

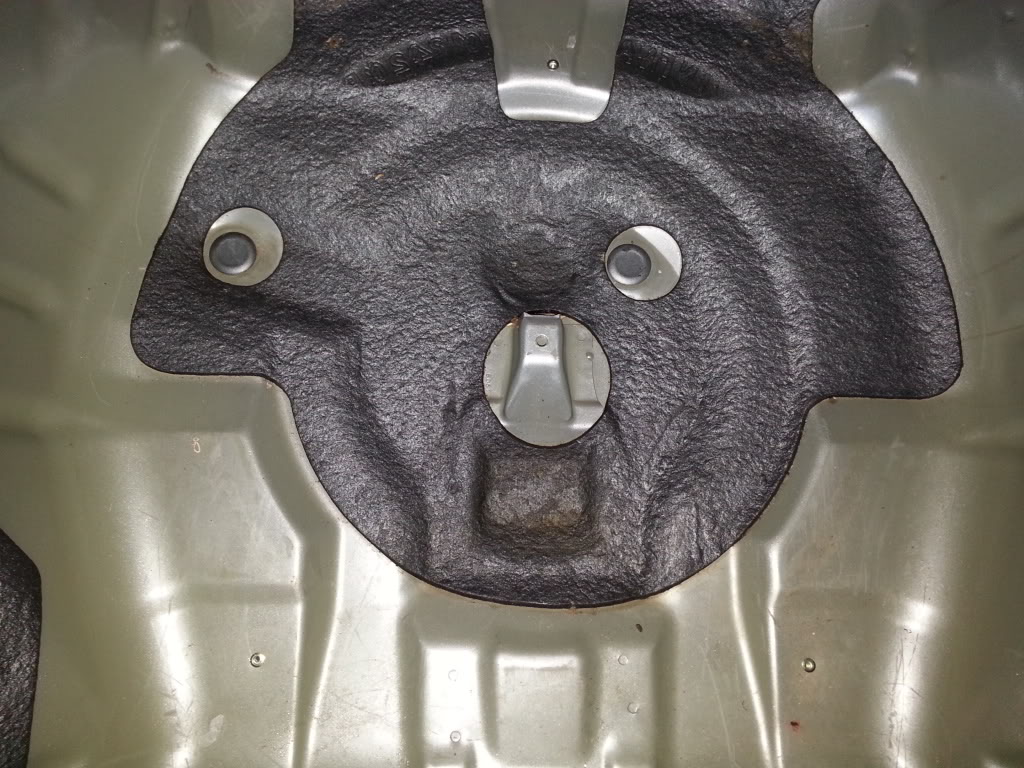

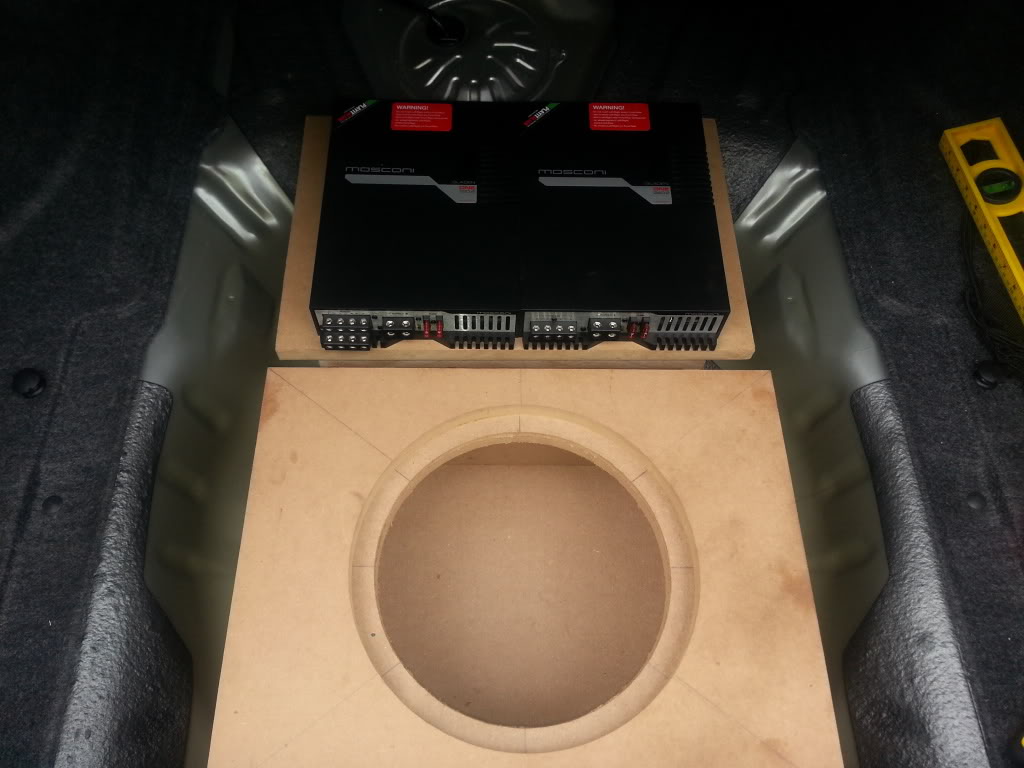

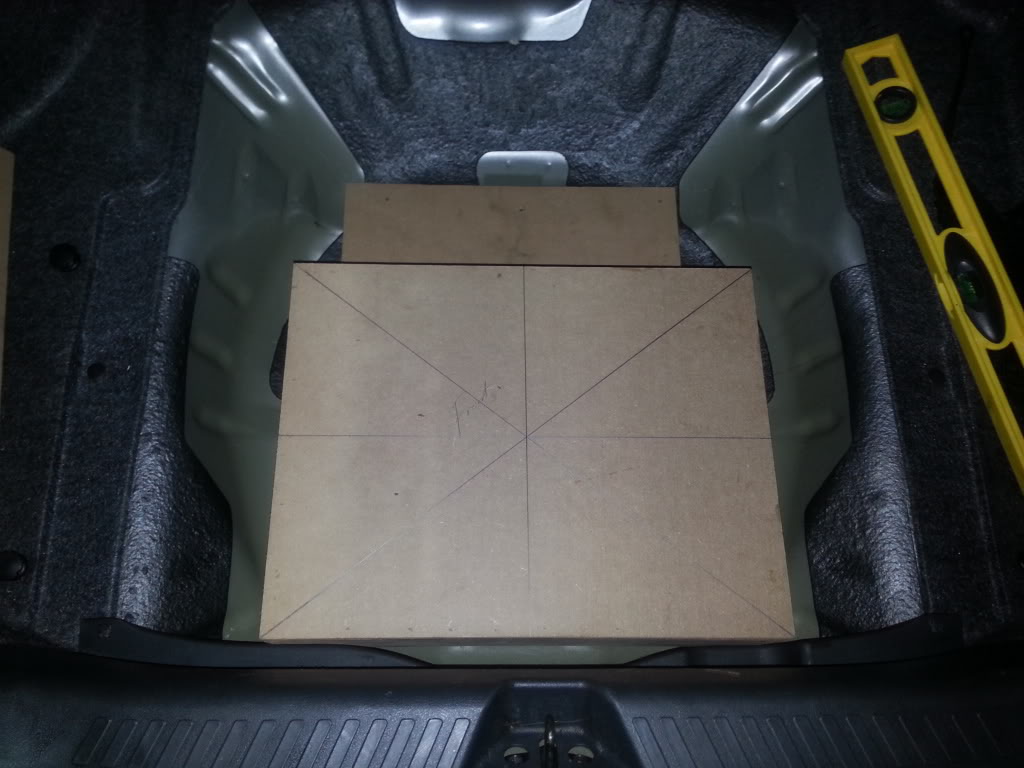

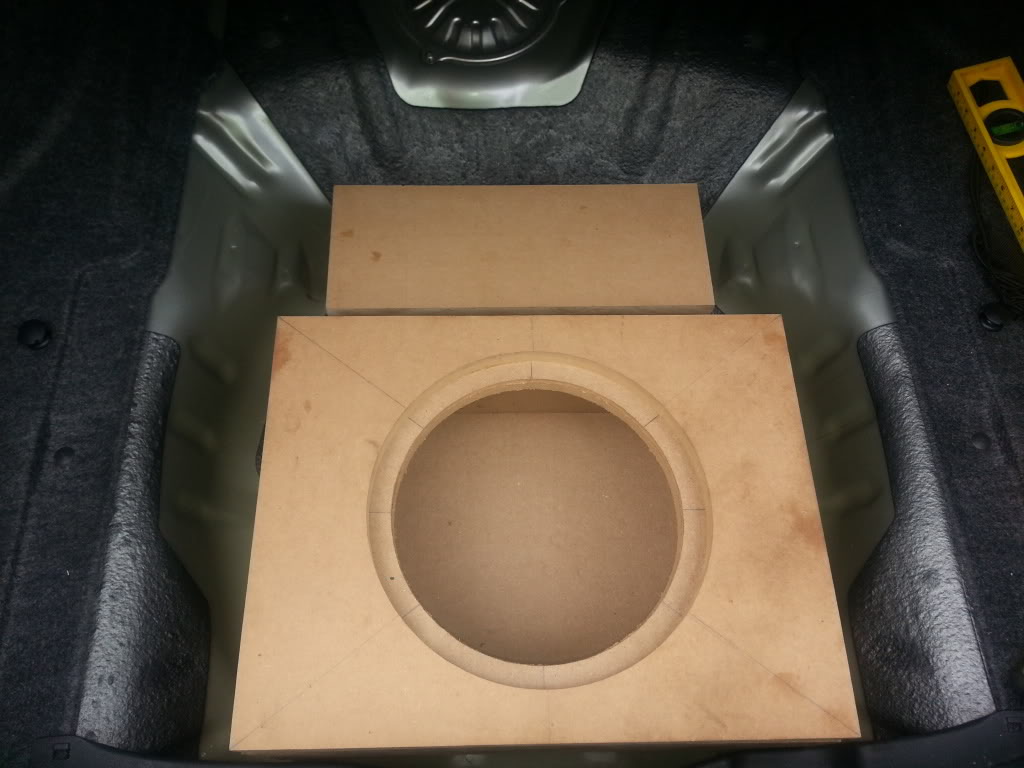

Moving onto the trunk, a 3/4" mdf base was mounted to the spare tire area to house the amp rack and a sealed .75 cu.ft enclosure. screw rivets were used to secure the base to the car.


Name:  20130718_202158_zps8351c542.jpg
Views: 213
Size:  172.8 KB


Name:  20130718_214543_zpsf82bb2fb.jpg
Views: 224
Size:  98.2 KB




Name:  20130719_211715_zpsd59f948b.jpg
Views: 148
Size:  89.5 KB


Name:  20130721_141132_zps911d2b45.jpg
Views: 144
Size:  87.2 KB


Name:  20130721_141144_zpsfb0d378a.jpg
Views: 144
Size:  80.9 KB


Name:  20130721_141243_zpsf6b085b8.jpg
Views: 145
Size:  87.3 KB



  #9
Old 08-29-2013, 09:34 AM
Newest Of Newbies
Thread Starter
Join Date: Jun 2013
Posts: 15
Default

Name:  20130724_234812_zpsc4f3cad4.jpg
Views: 147
Size:  91.6 KB

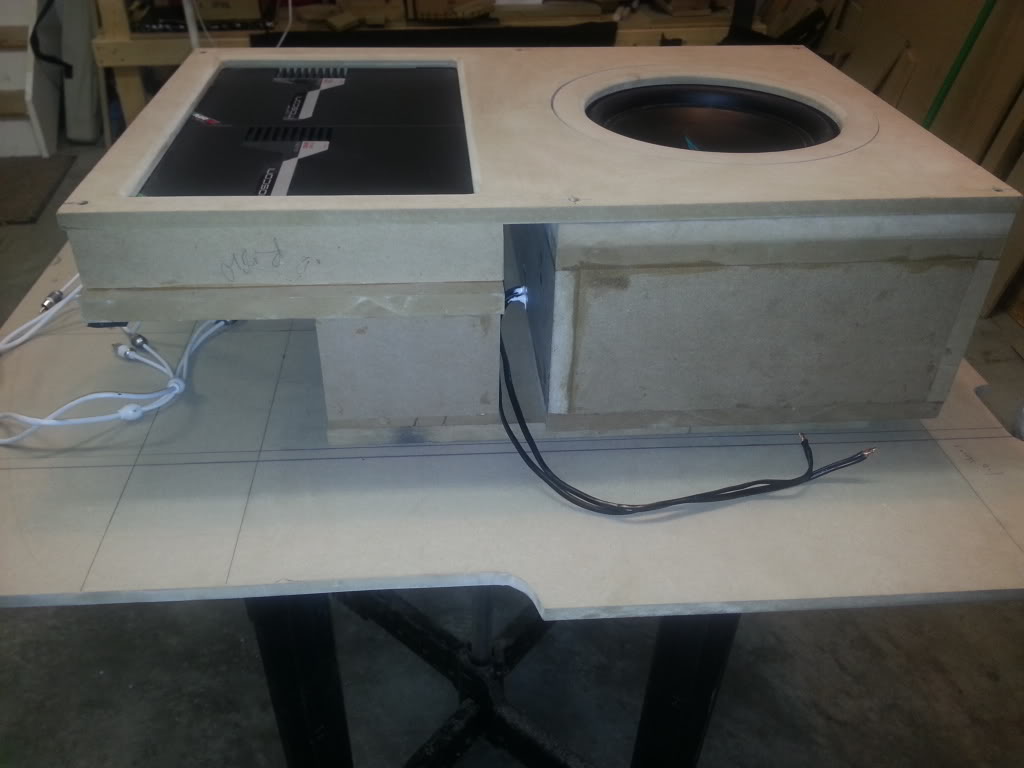

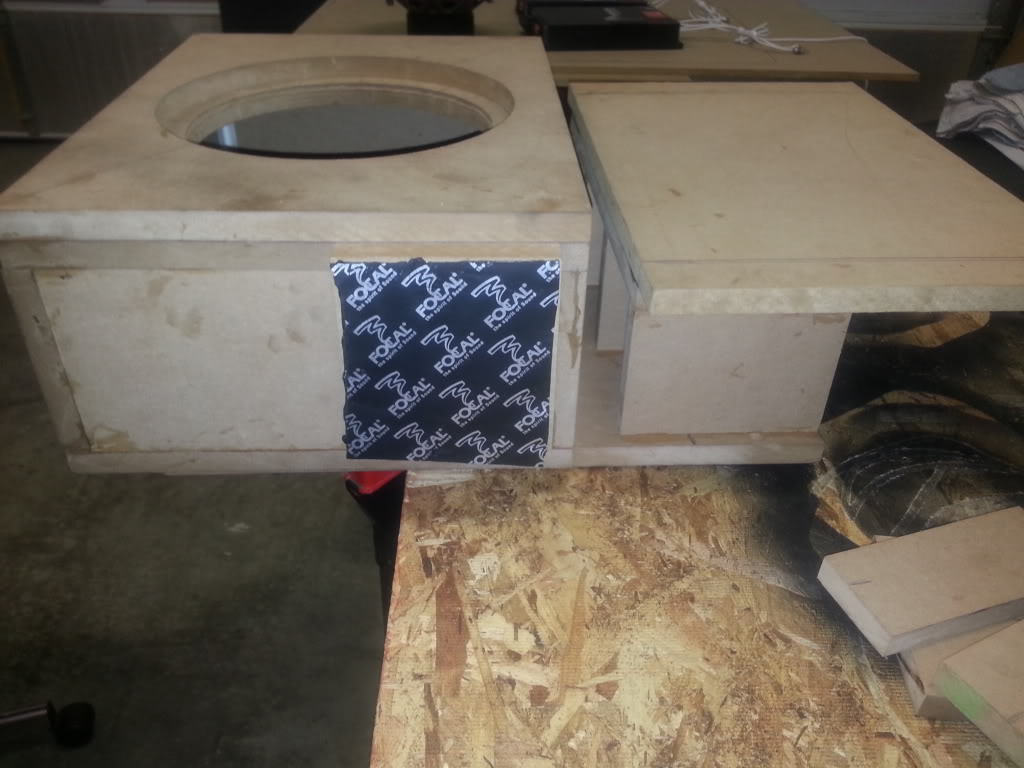

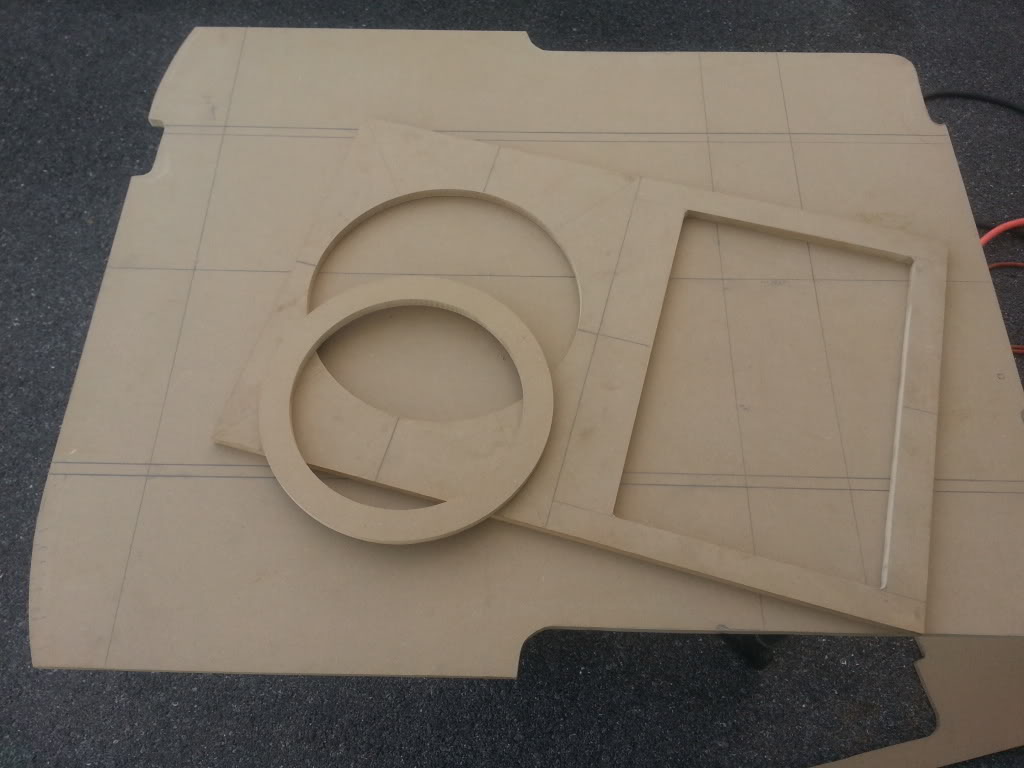

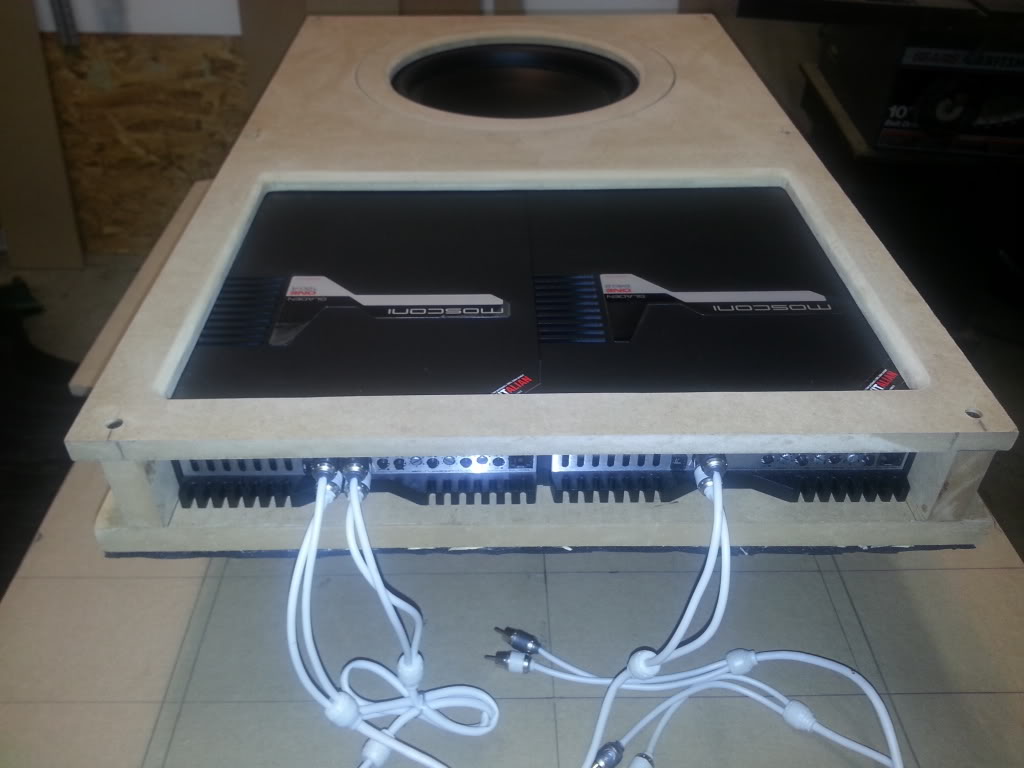

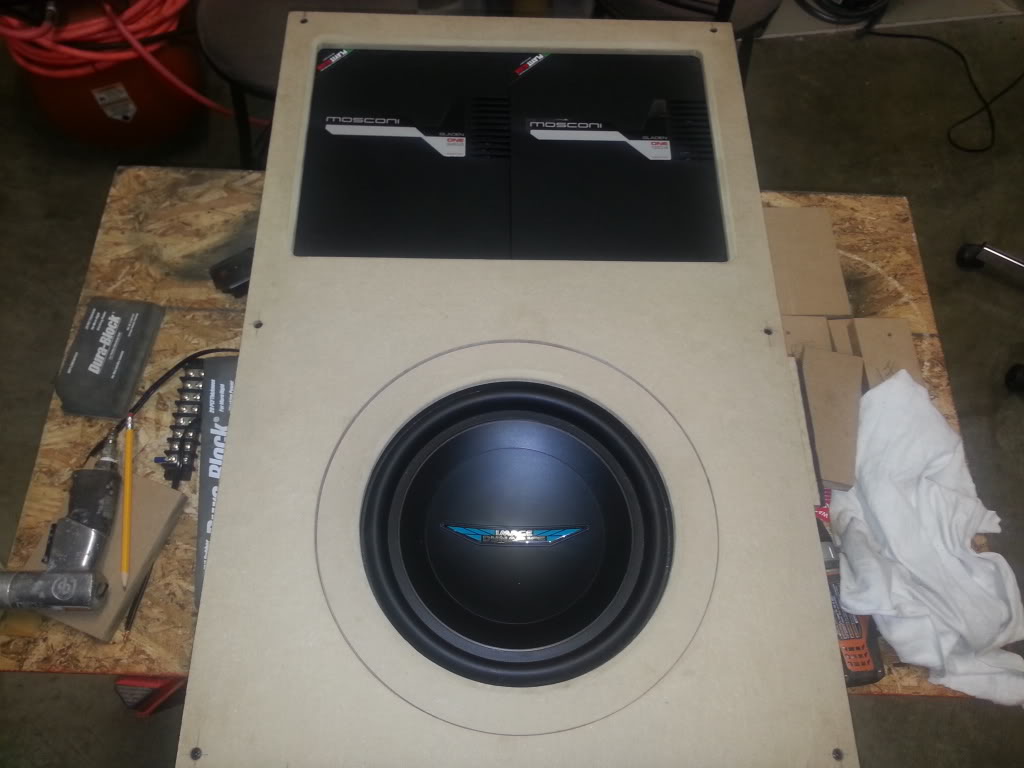

Next the trim panels are cut, routed and sanded.


Name:  20130725_185535_zps4356c21a.jpg
Views: 144
Size:  75.2 KB


Name:  20130725_212715_zps8e058f62.jpg
Views: 146
Size:  71.3 KB


Name:  20130725_212704_zpsf059ce61.jpg
Views: 141
Size:  60.1 KB


Name:  20130725_212341_zps68fcd3ec.jpg
Views: 144
Size:  74.8 KB

  #10
Old 08-29-2013, 09:36 AM
Newest Of Newbies
Thread Starter
Join Date: Jun 2013
Posts: 15
Default

Name:  20130725_192822_zpsede3ec3c.jpg
Views: 142
Size:  62.9 KB

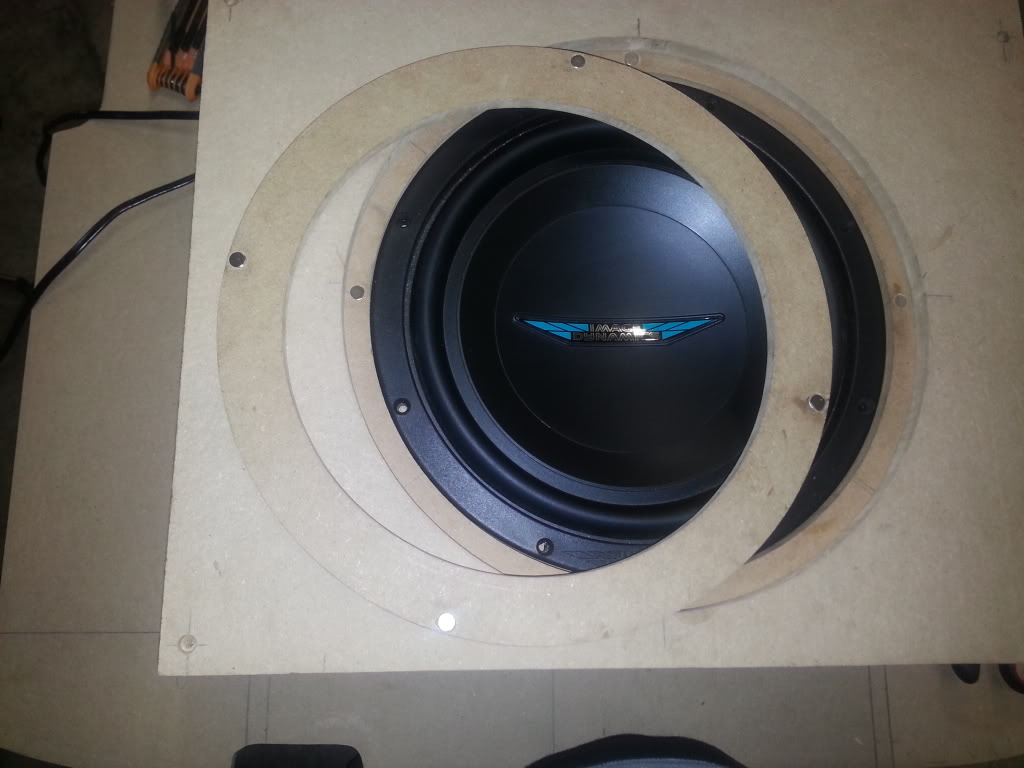

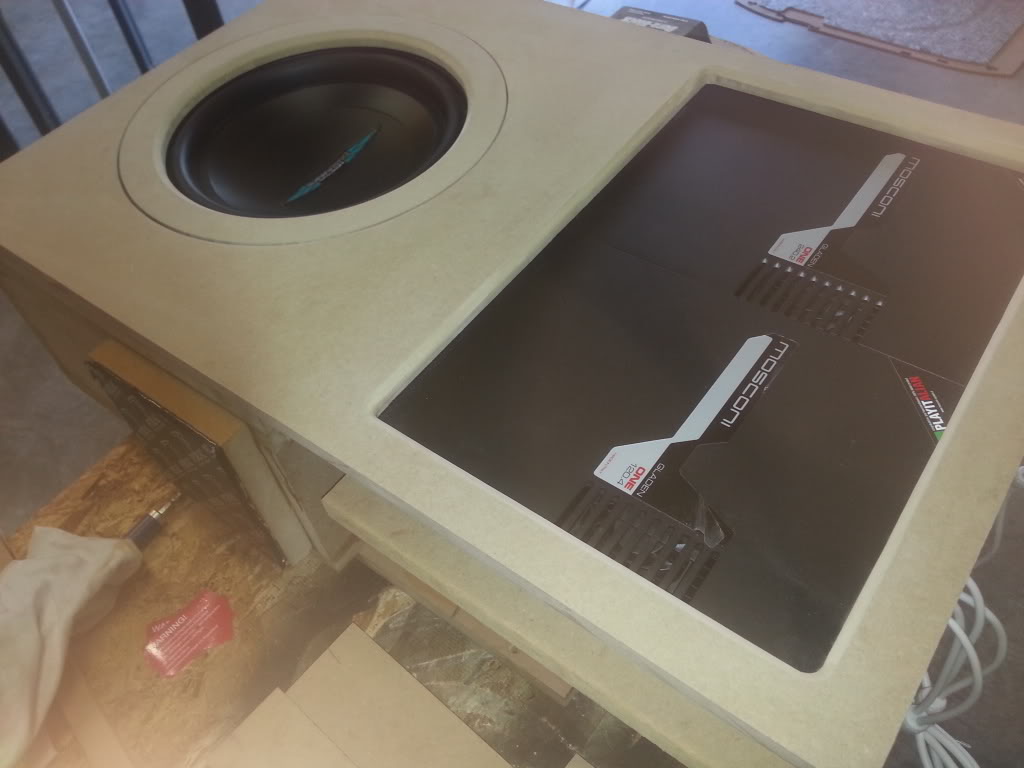

The trim ring that hide the sub woofers screw mounts in place using neo magnets


Name:  20130726_215319_zps1106acf6.jpg
Views: 152
Size:  71.8 KB
