2014 Accord Alarm Remote Start Viper 5706V

  #1
Old 10-20-2014, 09:32 PM
keep_hope_alive's Avatar
Super Moderator
Thread Starter
Join Date: Dec 2009
Location: Quad Cities, IL
Posts: 3,209
Default 2014 Accord Alarm Remote Start Viper 5706V

Sharing the wiring instructions for a 2014 Accord, not push to start models.

What i used:
Viper 5706V 2-way with LCD remote.
Xpresskit DBALL2 programmed with DBALL2 - 402.HONDA56 2.16

http://www.xpresskit.com/Compatibili...ion=2.16&c=223

This combo handles all models of Accord (smart key or non).

You will need the manual for the DBALL2
http://www.xpresskit.com/DocumentDow...irmwareid=9432

The non-PTS models are Install Type 8. Start by comparing the list for the Interface with the list for the Alarm. Note all of the features that a D2D interface will provide for you. The D2D interface communicates via CAN Bus to eliminate most of the wiring connections needed.

All of the connections dashed blue are not needed thanks to D2D. Note that 4-pin harness is the D2D harness to the alarm brain, it handles power, ground, and data.
Name:  xpresskitType8.png
Views: 794
Size:  191.6 KB

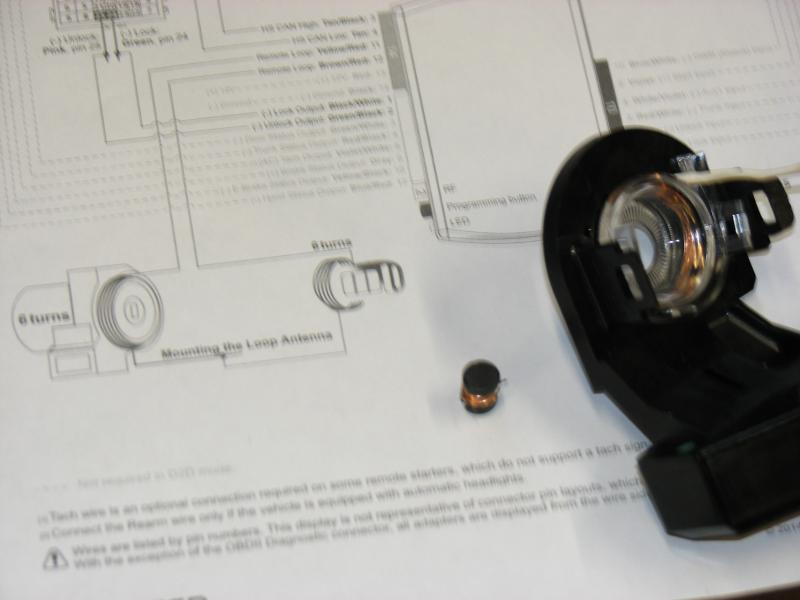

You need to sacrifice your grey valet key (no buttons). You wrap wire around the key and around the cylinder... but that's easier said than done. So i used laminated wire from a small inductor and soldered that to the wiring from the Interface.



I disassembled the key cylinder cover and wrapped the thin wire around the outside of the clear piece. I used thin strips of electrical tape to hold it in place.

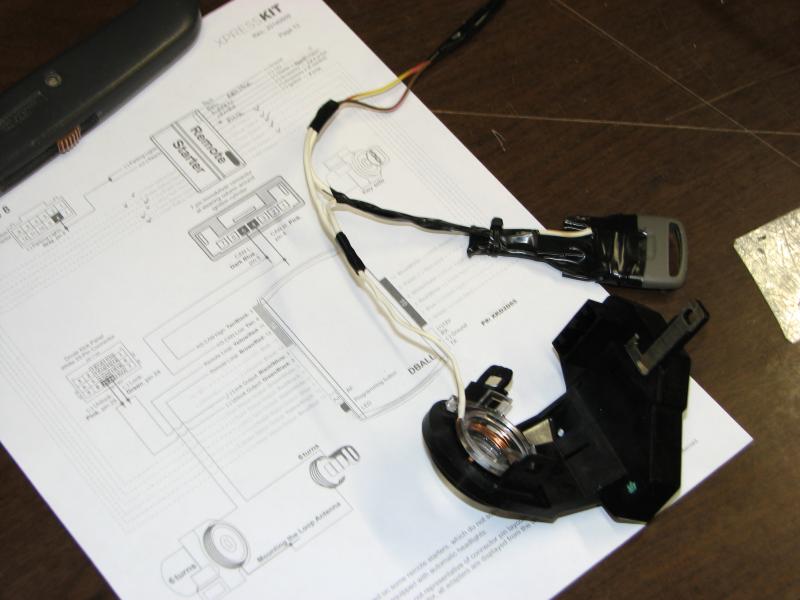

wrap laminated wire around the base of the key (where the RFID chip is)




be sure to tape/heatshrink the connections to fully protect them. This photo is for demonstration, i extended the wiring to the key to hide it deeper in the dash.

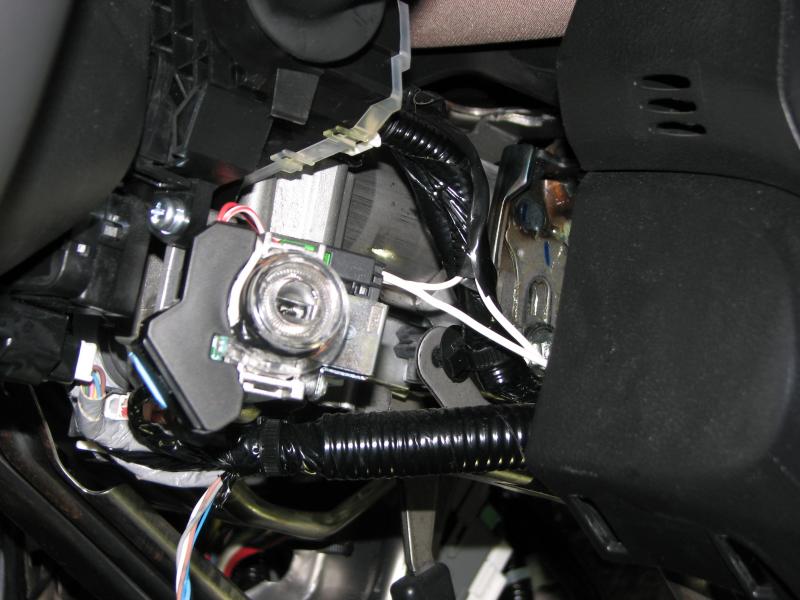

you will notice that the immobilizer housing has an arm with a hole in it - a small Phillips screw is located here, it's not easy to remove. a metal bracket held with two 10mm bolts has the main wiring harness wire clips in it - remove that and you have more access to the screw.



You can intercept CAN Bus wiring at the steering column also. bottom trim is held with one phillips screw in the middle and two phillips screws up top - rotate the steering wheel to gain access to them.


be sure to tape/loom/tie wires up when you're done



The lock and unlock wiring is also easily accessed in the driver's door harness - it's located where the rubber boot passes wiring to the door.





That completes vehicle wiring for the Xpresskit. Next we wire the 5706V brain.

Attached Thumbnails 2014 Accord Alarm Remote Start Viper 5706V-alarmrs2014005.jpg   2014 Accord Alarm Remote Start Viper 5706V-alarmrs2014001.jpg   2014 Accord Alarm Remote Start Viper 5706V-alarmrs2014002.jpg   2014 Accord Alarm Remote Start Viper 5706V-alarmrs2014006.jpg   2014 Accord Alarm Remote Start Viper 5706V-alarmrs2014003.jpg

2014 Accord Alarm Remote Start Viper 5706V-alarmrs2014007.jpg   2014 Accord Alarm Remote Start Viper 5706V-alarmrs2014008.jpg   2014 Accord Alarm Remote Start Viper 5706V-alarmrs2014009.jpg   2014 Accord Alarm Remote Start Viper 5706V-alarmrs2014011.jpg

Last edited by keep_hope_alive; 10-22-2014 at 10:20 AM.
  #2
Old 10-20-2014, 10:07 PM
keep_hope_alive's Avatar
Super Moderator
Thread Starter
Join Date: Dec 2009
Location: Quad Cities, IL
Posts: 3,209
Default

Viper 5706V

Main Harness (6-pin)
1 RED (+12v) constant 12V. White wire in 5-pin heavy gauge harness
2 BLACK (-) Ground to chassis
3 BROWN (+) Siren output - wire to siren in engine bay. (ground siren in engine bay)

4 WHITE/BROWN LIGHT FLASH ISOLATION WIRE - not used
5 WHITE PIN 30 of LIGHT FLASH RELAY - can be + or -. I set to + and intercepted a red wire in large green harness (see pic). - connection is a gray wire at steering column harness.
6 ORANGE 500 mA GROUND WHEN ARMED OUTPUT - I tied this to a Tilt sensor orange wire, otherwise not used.



Door Lock Harness (3-pin)
1 BLUE (-) 500mA UNLOCK OUTPUT - Not used, D2D takes care of this
2 NO WIRE
3 GREEN (-) 500mA LOCK OUTPUT - Not used, D2D takes care of this


Aux/Shutdown/Trigger Harness (24-pin)
1 PINK/WHITE (-) 200mA FLEX RELAY CONTROL OUTPUT Not used
2 BLUE/WHITE (-) 200mA 2ND STATUS /REAR DEFOGGER OUTPUT The rear defroster wire is Brown. Below dash fuse box, white 28 pin plug, pin 11
3 RED/WHITE (-) 200mA TRUNK RELEASE OUTPUT D2D takes care of this
4 BLACK/YELLOW (-) 200mA DOME LIGHT OUTPUT Not used
5 DARK BLUE (-) 200mA STATUS OUTPUT Not used, D2D takes care of this
6 WHITE/BLACK (-) 200mA AUX 3 OUTPUT Not used
7 WHITE/VIOLET (-) 200mA AUX 1 OUTPUT Not used
8 ORANGE/BLACK (-) 200mA AUX 4 OUTPUT Not used
9 GRAY (-) HOOD PIN INPUT (NC OR NO) Not used, D2D takes care of this
10 BLUE (-) TRUNK PIN/INSTANT TRIGGER - I tied this to the Tilt sensor blue wire, not used otherwise, D2D monitors the trunk
11 WHITE/BLUE ACTIVATION INPUT Not used
12 VIOLET/WHITE TACHOMETER INPUT D2D takes care of this
13 BLACK/WHITE (-) NEUTRAL SAFETY INPUT - Ground to Chassis
14 GREEN/BLACK (-) 200mA FACTORY ALARM DISARM OUTPUT D2D takes care of this
15 GREEN (-) DOOR INPUT Not used, D2D takes care of this

16 BROWN/BLACK (-) 200mA HORN HONK OUTPUT - Not used
17 PINK (-) 200mA IGNITION 1 OUTPUT Not used
18 VIOLET (+) DOOR INPUT Not used
19 VIOLET/BLACK (-) 200mA AUX 2 OUTPUT Not used
20 BROWN (+) BRAKE SHUTDOWN INPUT D2D takes care of this
21 VIOLET/YELLOW (-) 200mA STARTER OUTPUT Not used
22 GRAY/BLACK (-) DIESEL WAIT TO START INPUT Not used
23 ORANGE (-) 200mA ACCESSORY OUTPUT Not used
24 GREEN/WHITE (-) 200mA FACTORY ALARM ARM OUTPUT Not used


Remote Start, 10-pin heavy gauge harness
All connections made to green heavy gauge harness below dash or at steering column.
1 No Wire
2 RED/BLACK (+) FUSED 12V ACC/STARTER INPUT - White wire
3 PINK/BLACK (+) FLEX RELAY INPUT - not needed
4 PINK/WHITE (+) IGNITION 2/FLEX RELAY OUTPUT - Red wire **
5 RED (+) FUSED 12V IGN 1 INPUT - White wire
6 GREEN (+) STARTER INPUT (KEY SIDE STARTER KILL) - Blue (to column)***
7 VIOLET (+) STARTER OUTPUT (CAR SIDE STARTER KILL) - Blue (to fuse block)***
8 ORANGE (+) ACC OUTPUT - Orange wire
9 RED/WHITE (+) FUSED 12V IGN 2 INPUT - White wire
10 PINK (+) IGN 1 INPUT/OUTPUT - Green wire


** Program Viper 5706V Menu 3, Item 8 to Option 2 for Flex Relay = Accessory 2.
*** Cut the Blue wire. This is the only wire you need to cut. This is the starter interrupt function.


Attached Thumbnails 2014 Accord Alarm Remote Start Viper 5706V-accordparkinglightspos.jpg   2014 Accord Alarm Remote Start Viper 5706V-alarmrs2014015.jpg

Last edited by keep_hope_alive; 10-22-2014 at 10:16 AM.
  #3
Old 10-20-2014, 11:24 PM
keep_hope_alive's Avatar
Super Moderator
Thread Starter
Join Date: Dec 2009
Location: Quad Cities, IL
Posts: 3,209
Default

Hopefully this will save some people some time. It wasn't immediately clear if i had to cut the factory blue wiring for starter input/output because the Xpresskit says it handles starter output. I found some info, but nothing specific for the non-PTS models.

I got the 5706V online for around $220. I got the Xpresskit DBALL2 from my local dealer for $80 and they programmed it free of charge.

without the tilt sensor, the only wire i needed to connect in the large 24-pin harness is grounding the black/white wire. I bundled the rest but did save the aux outputs for future use.

Others have said that using the iDataLink interface eliminates the need for wiring a key. I've used iDataLink before with good success. I went with Xpresskit because they are also made by Directed (same as Viper) and I figured the D2D would be more seamless. It appears that the Xpresskit is much easier to program as well. Below are features retained by D2D and the final programming method (4 steps in gray - white is done by dealer).
Name:  xpresskitfeatures.png
Views: 750
Size:  214.9 KB

Name:  xpresskitprogram.png
Views: 1846
Size:  284.0 KB


Last edited by keep_hope_alive; 10-22-2014 at 10:20 AM.
  #4
Old 11-25-2014, 10:15 PM
keep_hope_alive's Avatar
Super Moderator
Thread Starter
Join Date: Dec 2009
Location: Quad Cities, IL
Posts: 3,209
Default

I had an issue where the car would start on RS but then shut off after 20 seconds or so. it would then attempt to restart twice (no fire). then it would give up and just tell me "remote start off" on my key fob. it wasn't all of the time but most of the time. it would also sometimes fail to keep the car running in "pit stop mode".

you can do diagnostics on the last remote start shutdown (refer to install manual) and it told me low voltage (voltage mode).

I did some digging and the solution is in regards to the tach.

I had it programmed for virtual tach. it looks at voltage and expects to seen an increase in voltage. but this car regulates voltage at 12.5VDC when the headlights are off (possible ELD). so the car would start and the voltage would be the same and the 5706V thought the car wasn't running. i'm not sure why it failed to restart.

I reset the virtual tach.
I changed the programming from Virtual Tach to tach.
I performed the tach learning procedure.
The system confirmed it learned the tach through D2D.

car seems to start fine now. all of it makes sense.

  #5
Old 12-23-2014, 07:47 PM
Join Date: Dec 2014
Posts: 1
Default

I thought the point of the module was to not have to sacrifice the honda key?

  #6
Old 12-25-2014, 07:05 AM
keep_hope_alive's Avatar
Super Moderator
Thread Starter
Join Date: Dec 2009
Location: Quad Cities, IL
Posts: 3,209
Default

Originally Posted by Eduardoperezjr View Post
I thought the point of the module was to not have to sacrifice the honda key?
the module is required to trick the the immobilizer and also communicate with the car via CANBUS. you can see how few connections are needed anymore thanks to CANBUS communication. wrapping the key is limited to a few select models and has been done for over a decade - it used to be the only way until companies started figuring out how to interface directly.

xpresskit will eventually have a firmware update that eliminates the need to wrap the valet key.

idatalink has a module that communicates with the immobilizer directly so you don't lose a key, but it also requires more wiring.

i vacillated on which module and chose to stick with a Directed product for known compatibility. If i had gotten a different alarm/rs brand, i would have used idatalink.


Last edited by keep_hope_alive; 12-25-2014 at 07:08 AM.
