Default 97 Accord VSS connector picture
While replacing the VSS - the connector came apart and the wires pulled out. Can someone take a picture of their connector so I know which wire goes where? 97 Accord, 4-cyl - non v-tech.

Thanks

Reply
  #2
Old 10-08-2011, 12:49 PM
poorman212's Avatar
Super Moderator
Join Date: May 2010
Location: Youngsville, NC
Posts: 11,832
Default
Two, org and yel...correct? I can go look at the 95 if yours is the same.

Moved to the correct section

Reply
  #3
Old 10-08-2011, 01:11 PM
bradgiles's Avatar
Thread Starter
Join Date: Dec 2010
Posts: 3
Default
97 has three - org, yel, black

thanks

Reply
  #4
Old 10-08-2011, 01:15 PM
poorman212's Avatar
Super Moderator
Join Date: May 2010
Location: Youngsville, NC
Posts: 11,832
Default
sorry there are three, be back in a few.

Reply
  #5
Old 10-08-2011, 01:25 PM
poorman212's Avatar
Super Moderator
Join Date: May 2010
Location: Youngsville, NC
Posts: 11,832
Default
Hope this comes thru...if this isn't clear let me know.

Attached Thumbnails 97 Accord VSS connector picture-5th-gen-speed-sensor-wire-color.jpg
Reply
  #6
Old 10-08-2011, 01:55 PM
poorman212's Avatar
Super Moderator
Join Date: May 2010
Location: Youngsville, NC
Posts: 11,832
Default

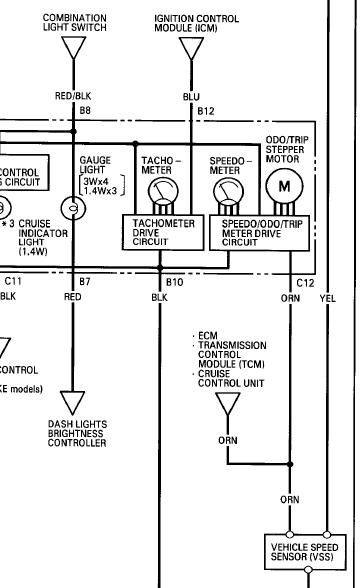

Glad we could help....and thanks for joining....sorry for spacing, I first looked at the wire diagram...then went outside.

Attached Thumbnails 97 Accord VSS connector picture-5th-gen-speedo-inputs.jpg
Reply
  #7
Old 10-08-2011, 02:03 PM
bradgiles's Avatar
Thread Starter
Join Date: Dec 2010
Posts: 3
Default
Perfect - had the org and black reversed. Works great now.

Thanks!

Reply
