Greetings,
88 accord hatchback 5sp. The "brake lamp" light on the instrument panel stays lit and every bulb on the car is fine. I've replaced the brake light sw. The car is custumized and in the process I installed a lighted spoiler and removed the hatch window brake light. I used the same wires that went to the hatch light to wire the spoiler light. I've tried direct grounding to the chassis as well as using the supplied gr/wh. hot and blk gnd. I do have the service manual but it is of little help. On the wiring schematic there is an arrow pointing to the R rear brake light with the words, "brake light failure sensor", but I see nothing there.This has got me really frustrated. I've been working on the problem, off and on, for 8 yrs. ANY IDEAS
thanks
brian
88 accord hatchback 5sp. The "brake lamp" light on the instrument panel stays lit and every bulb on the car is fine. I've replaced the brake light sw. The car is custumized and in the process I installed a lighted spoiler and removed the hatch window brake light. I used the same wires that went to the hatch light to wire the spoiler light. I've tried direct grounding to the chassis as well as using the supplied gr/wh. hot and blk gnd. I do have the service manual but it is of little help. On the wiring schematic there is an arrow pointing to the R rear brake light with the words, "brake light failure sensor", but I see nothing there.This has got me really frustrated. I've been working on the problem, off and on, for 8 yrs. ANY IDEAS
thanks
brian
#4
Nope, that one works as it's supposed to. It's the one that shows if any doors are open or the rear hatch is open. It also has a "brake lamp" light.
#5

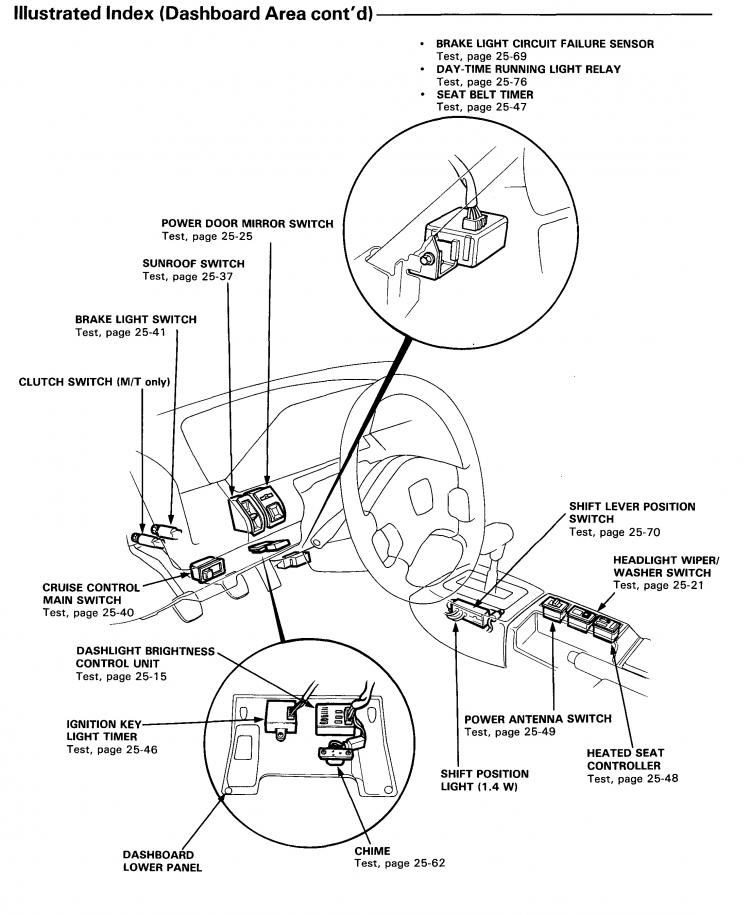

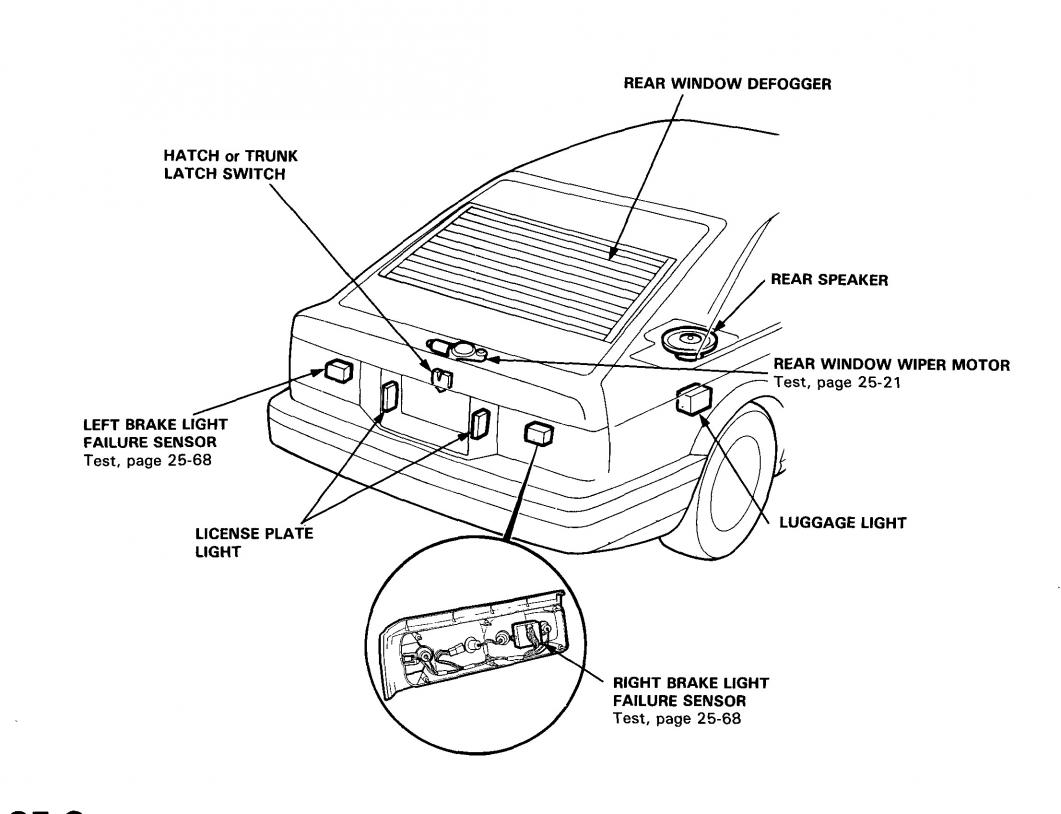

Thanks, I'll take a closer look at my manuals, I have several. On the schematic it shows it in the rear but yours shows it up under the dash. I just want to find it no matter where it is.
#7
brian
#8
I looked at hondaautomotiveparts.com and it looks like one is 20 and the other is 30. The 86 shop manual that I am referencing can be downloaded from http://www.spoonertuner.com/manuals
There is no need to throw money at a working part. You should probably diagnose first, since you already removed the two sensors.
Page 25-68 shows the electrical tests for the sensors. There are also some tests for a third sensor on 25-69, but the wiring diagram says that control the KG model only. I don't how to tell if your accord is a kg model. That is the module that is under the dash in the pic I posted above.
There is no need to throw money at a working part. You should probably diagnose first, since you already removed the two sensors.
Page 25-68 shows the electrical tests for the sensors. There are also some tests for a third sensor on 25-69, but the wiring diagram says that control the KG model only. I don't how to tell if your accord is a kg model. That is the module that is under the dash in the pic I posted above.
