5th Gen Budget Drivers

  #1
Old 11-25-2012, 10:58 AM
Been Around A Long Time Member
Thread Starter
Join Date: Jul 2011
Location: Denver
Posts: 1,007
Default 5th Gen Budget Drivers

Moved the 2-way active setup from my old car to my '96 LX. Old setup:

HU: Dual XR4110 - AM/FM/Mechless Receiver
Active Crossover: Coustic XM6
Amp: Kenwood KAC-649S, 30 W 2 + 80 W 1
Amp: Pyramid PB-110PX, 50 W x 2

Mid's: Dayton Audio RS180-4 7"
Tweets: SEAS Prestige 27TFFNC/G
Sub: Klipschorn Promedia 6" home theater gutted; only the speaker and box

Tried mounting the RS180 in the Accord door with a 1" spacer. It cleared the window but was just too big. It wouldn't quite clear the door panel and I didn't want to cut it.

Read some good things about Aura NS6 6" woofers, specifically that they can be crossed pretty high:

"http://www.parts-express.com/pe/showdetl.cfm?partnumber=299-030"

Plus they're $9 each. Smaller diameter than the Daytons but still fairly deep. Also, paper cone and foam surround so they have to be pretty well protected.

Woofer Installation:

Name:  Fact_speaker.jpg
Views: 18
Size:  30.8 KB
factory coaxial

Name:  Fact_basket.jpg
Views: 19
Size:  34.8 KB
factory basket

Name:  Basket_NS6_spacer.jpg
Views: 19
Size:  73.2 KB
basket cut with hole to accommodate magnet - 1/2" spacer - NS6 woofer

Name:  Cut_basket.jpg
Views: 20
Size:  37.1 KB

Name:  Woofer_spacer.jpg
Views: 20
Size:  36.4 KB

Name:  Finished_spkr_harnesses.jpg
Views: 20
Size:  42.1 KB
Assembled woofers

Tweeter installation:

Name:  Tweeter_outside.jpg
Views: 19
Size:  30.0 KB

Name:  Tweeter_inside.jpg
Views: 19
Size:  36.1 KB

The brackets were from my old car. They don't bolt to the door panel, just a friction fit.

Dumpster-dived an 8" home theater sub, Polk RM600TD. The amp was blown so I took the the transformer, etc. off of the plate and wired a male AC cord directly to the speaker. Wired a female AC cord to the bridged Kenwood output. The sub sits on the seat but can be unplugged if I need the room.

Name:  Sub_front.jpg
Views: 18
Size:  31.1 KB

Name:  Sub_back.jpg
Views: 19
Size:  34.0 KB

Have to figure out a way to strap it down so it doesn't go flying if the car gets rear ended. The center seat belt won't go around it.

Cross:
  • Sub low-passed at 120Hz
  • Woofers bandpassed at 120Hz - 3KHz
  • Tweeters high-passed at 2.6KHz

Had to turn the output of the tweeters and subwoofer down to better match the Aura woofers. I think it's because the Auras are 8 ohm drivers. Anyway, after playing with the cross points and output levels I got it sounding pretty good. Get a little alternator/ignition noise sometimes out of the tweets. Probably the cheap Pyramid amp. It really is the single part of the system I should have spent more money on. The 8" Polk goes quite a bit lower than the previous, dumpster-dived 6" Klipschorn home theater sub.

  #2
Old 11-25-2012, 12:03 PM
poorman212's Avatar
Super Moderator
Join Date: May 2010
Location: Youngsville, NC
Posts: 11,819
Default

How short it the center belt? I have seen seat belt extenders before.....just an idea.

  #3
Old 11-27-2012, 10:42 PM
keep_hope_alive's Avatar
Super Moderator
Join Date: Dec 2009
Location: Quad Cities, IL
Posts: 3,213
Default

put the sub in the trunk, rear corner.

  #4
Old 11-28-2012, 11:38 AM
Been Around A Long Time Member
Thread Starter
Join Date: Jul 2011
Location: Denver
Posts: 1,007
Default

Good idea. I'll check out seat belt extenders. It's a wagon so there's no place to stash it.

  #5
Old 01-02-2013, 02:56 PM
Been Around A Long Time Member
Thread Starter
Join Date: Jul 2011
Location: Denver
Posts: 1,007
Default

Get a little alternator/ignition noise sometimes out of the tweets. Probably the cheap Pyramid amp. It really is the single part of the system I should have spent more money on.

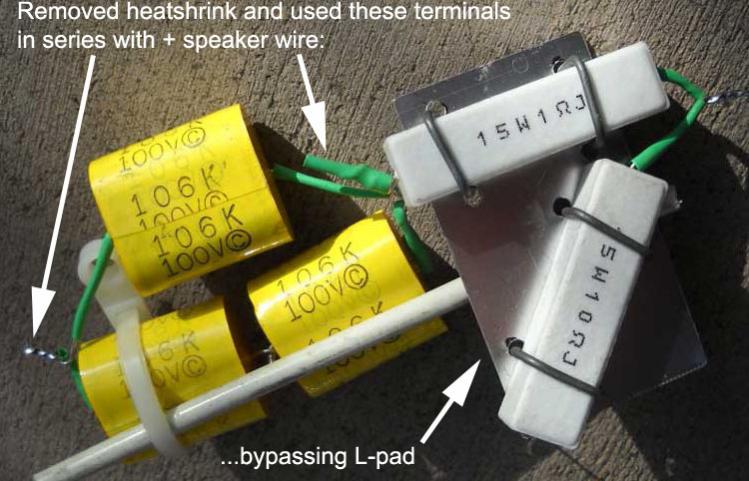

"A little" noise turned into a lot of noise on a recent long distance trip. Tried rearranging the RCA & power cables with little improvement. Tried an inline noise choke on the crappy Pyramid amp; no improvement. Finally just removed that amp from behind the radio and hooked up the tweeters to the HU's line outputs with a passive crossover. Needed a 15μF cap to cross @~2.6K. Ended up using one 10μF in parallel with two 10μF in series, pic attached. Built a 3dB L-pad and attached it to the XOver just in case the tweeters were too bright; didn't end up needing padding. It sounds good & no more noise!

Attached Thumbnails 5th Gen Budget Drivers-tweet-xover.jpg

Last edited by Roader; 01-02-2013 at 02:58 PM. Reason: Typo
