2004 Accord Map Lights & Sunglass Holder fix, with photos

  #1
Old 01-17-2016, 10:17 AM
othello's Avatar
Newest Of Newbies
Thread Starter
Join Date: Jan 2016
Location: Frederick County, Maryland
Posts: 13
Default 2004 Accord Map Lights & Sunglass Holder fix, with photos

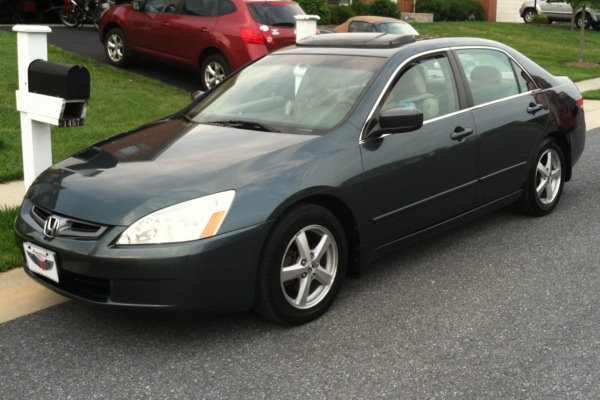

My 2004 Accord is a great car with just a few items needing some work. This was my oldest daughter's car while she was in college. She wanted to purchase a new car after graduation, but received low trade-in offers for a 10+ year old Accord.



On the other hand, I was looking for a daily driver over the winter after my second oldest daughter took our 1998 Civic to college. I decided to 'buy' the Accord and we agreed on its value, but since the Accord was already titled and registered in both our names, there were no sales taxes, title fees, etc. to increase the total.

Getting back to those few items needing work, I noticed both map lights illuminated when using the clear lens as the switch. However, only the driver side map light in the console assembly illuminated when opening one of the car doors, along with the rear dome and door lights.

In the grand scheme of things, the passenger side map light not illuminating when opening a door was no big deal. As the expression goes, a First World problem. However, the sunglasses holder began opening unexpectedly, and I decided those two issues would be great. This forum helped me get started with a previous thread ...

Thread link: https://www.hondaaccordforum.com/for...343/#post64788

... and I decided to provide a photographic 'how-to' thread.

The next several posts will include photos of the work restoring full functionality to the console assembly map lights and secure locking to the sunglasses holder. To keep any single post from getting too long, six photos will be my limit.



Happily, the 'procedure' was quite inexpensive, but more on that later.

The next post will get the procedure started...

Attached Thumbnails 2004 Accord Map Lights & Sunglass Holder fix, with photos-24109117426_88f5458fdf_z.jpg   2004 Accord Map Lights & Sunglass Holder fix, with photos-24125272370_445c20cf5b_z.jpg
  #2
Old 01-17-2016, 10:29 AM
othello's Avatar
Newest Of Newbies
Thread Starter
Join Date: Jan 2016
Location: Frederick County, Maryland
Posts: 13
Default

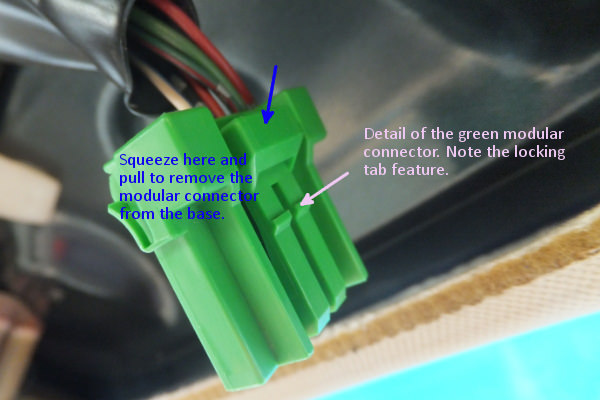

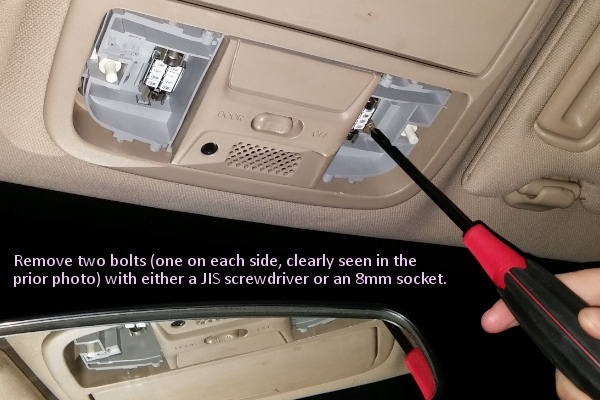

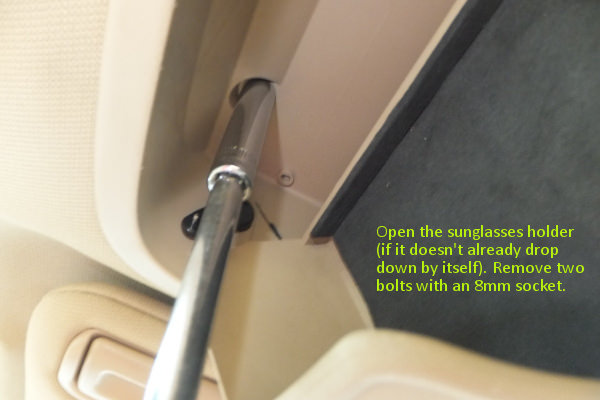

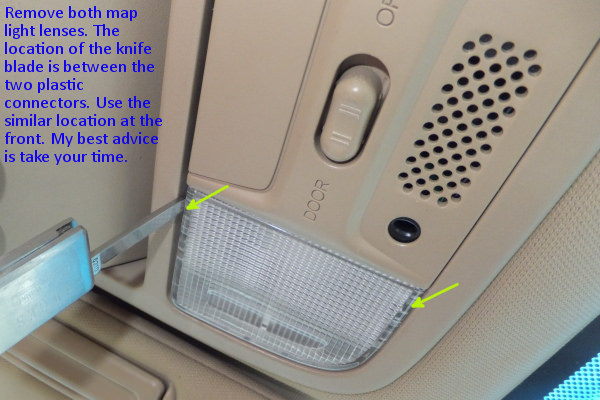

1. Going under the knife (over the knife, in this situation )...


2.


3.


4.


5.


6.


Already reached my six photo limit. This post ends here, but another is coming to continue the procedure.

Attached Thumbnails 2004 Accord Map Lights & Sunglass Holder fix, with photos-24393718876_be356320db_z.jpg   2004 Accord Map Lights & Sunglass Holder fix, with photos-24124335550_6345771ddb_z.jpg   2004 Accord Map Lights & Sunglass Holder fix, with photos-23791740774_6072372c52_z.jpg   2004 Accord Map Lights & Sunglass Holder fix, with photos-23791739854_138ccf05e7_z.jpg   2004 Accord Map Lights & Sunglass Holder fix, with photos-23793140843_e033870dd8_z.jpg

2004 Accord Map Lights & Sunglass Holder fix, with photos-24393712556_f28568428b_z.jpg
  #3
Old 01-17-2016, 10:40 AM
othello's Avatar
Newest Of Newbies
Thread Starter
Join Date: Jan 2016
Location: Frederick County, Maryland
Posts: 13
Default

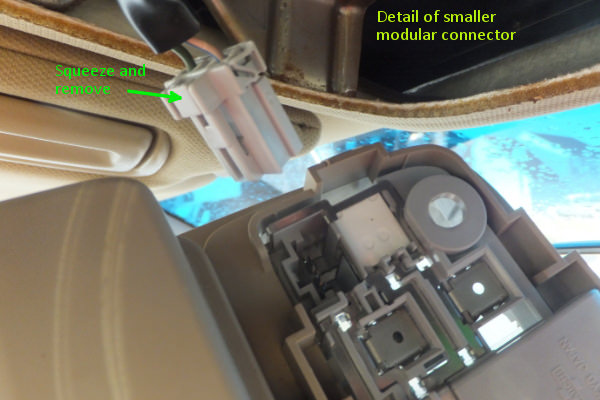

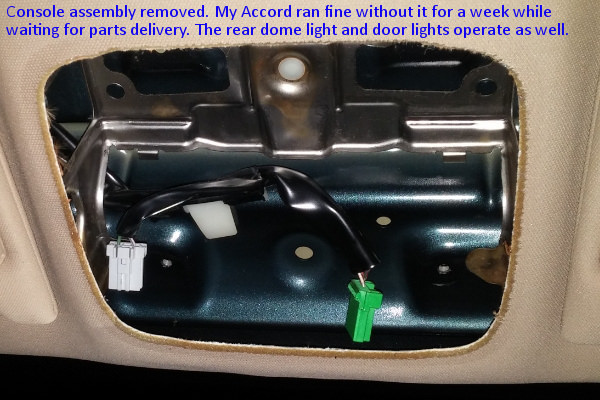

7. The procedure continues...


8.


9.


10.


11.

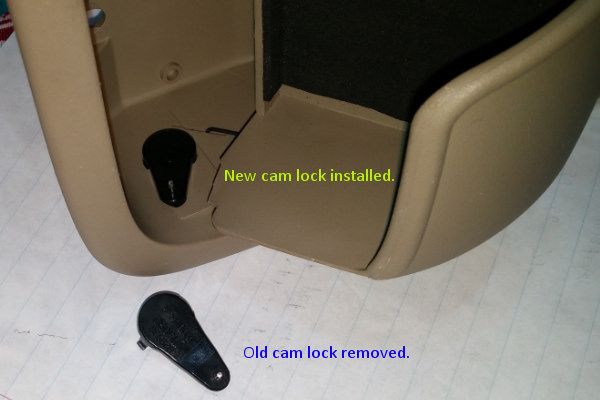

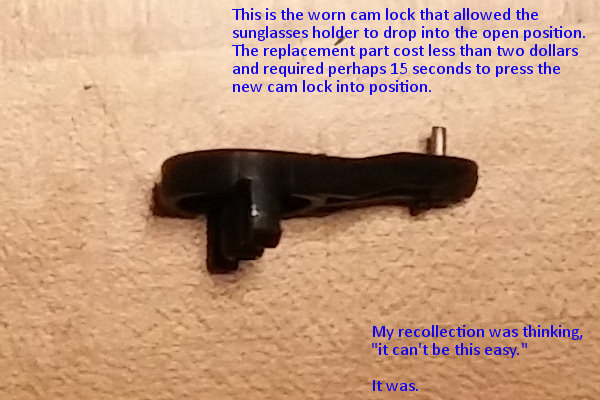

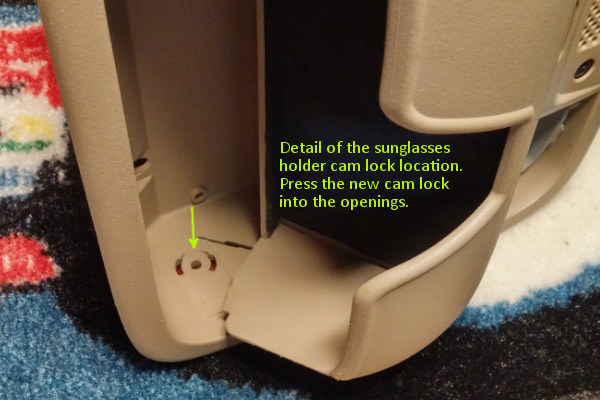

12. The cam lock was an unexpectedly simple part. I overthought this step far too much in advance. Removal and installation turned out quite simple. Remove the original with a small screwdriver and install the replacement with a finger press...


The procedure moved along nicely. Now the map lights need some attention.

Attached Thumbnails 2004 Accord Map Lights & Sunglass Holder fix, with photos-24393711276_8117422319_z.jpg   2004 Accord Map Lights & Sunglass Holder fix, with photos-24419943825_c63f39ac82_z.jpg   2004 Accord Map Lights & Sunglass Holder fix, with photos-23791734104_83d09d233d_z.jpg   2004 Accord Map Lights & Sunglass Holder fix, with photos-24052122489_fdd195ba4e_z.jpg   2004 Accord Map Lights & Sunglass Holder fix, with photos-24419940035_da7280c545_z.jpg

2004 Accord Map Lights & Sunglass Holder fix, with photos-23791730704_76a79d352d_z.jpg
  #4
Old 01-17-2016, 10:44 AM
othello's Avatar
Newest Of Newbies
Thread Starter
Join Date: Jan 2016
Location: Frederick County, Maryland
Posts: 13
Default

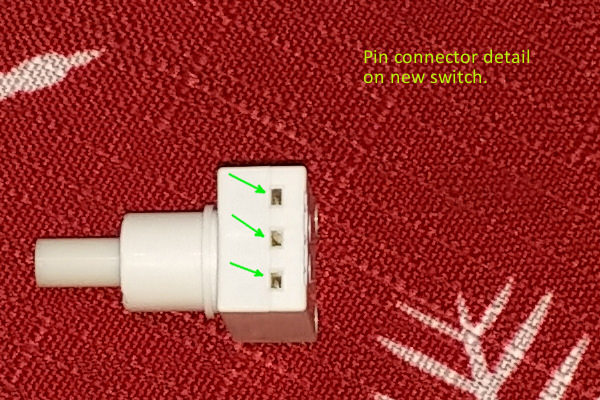

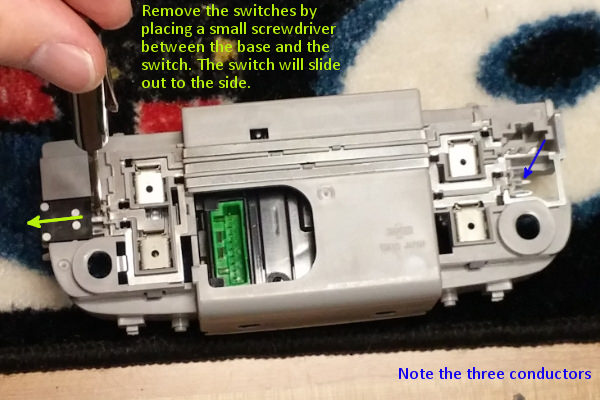

13. As noted previously, the map lights are next.


14.


15. Honda doesn't sell these switches separately from the base, which costs much more.
However, a previous thread in this forum provided a source for my purchase.


16.


17.


18.


This procedure is moving closer to completion!

Attached Thumbnails 2004 Accord Map Lights & Sunglass Holder fix, with photos-23793131353_0d86a94971_z.jpg   2004 Accord Map Lights & Sunglass Holder fix, with photos-24337455131_4df8e7d03c_z.jpg   2004 Accord Map Lights & Sunglass Holder fix, with photos-23793128513_cbe924b46d_z.jpg   2004 Accord Map Lights & Sunglass Holder fix, with photos-23793127573_9204a99741_z.jpg   2004 Accord Map Lights & Sunglass Holder fix, with photos-24337451211_cb0344bdab_z.jpg

2004 Accord Map Lights & Sunglass Holder fix, with photos-23793124063_6248056caf_z.jpg
  #5
Old 01-17-2016, 10:49 AM
othello's Avatar
Newest Of Newbies
Thread Starter
Join Date: Jan 2016
Location: Frederick County, Maryland
Posts: 13
Default

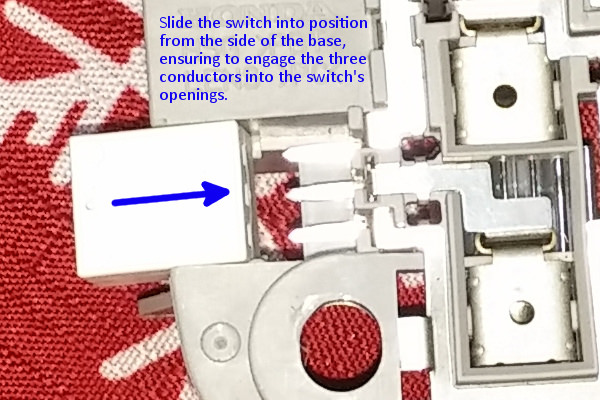

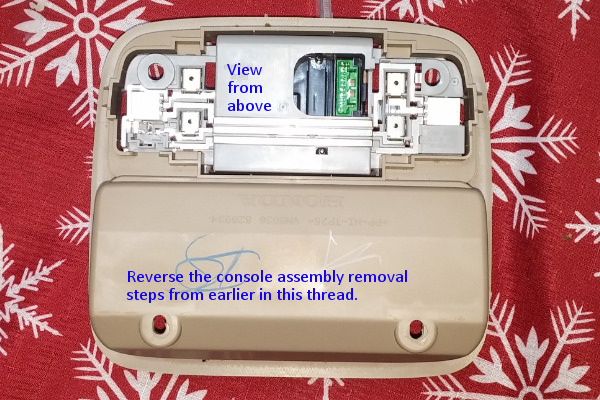

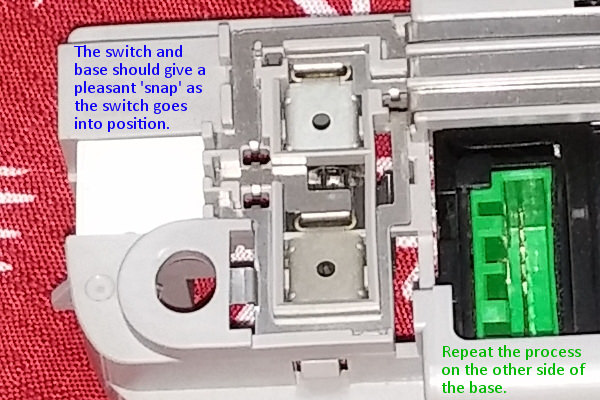

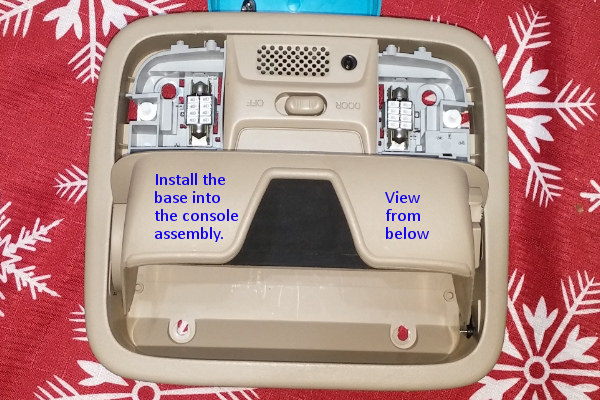

19. The replacement parts are installed. Time to put the Accord together.


20.

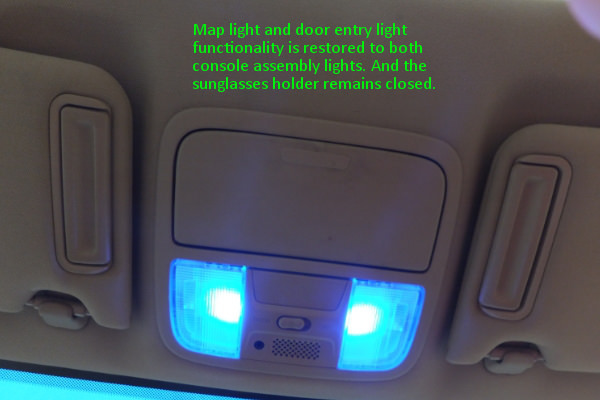

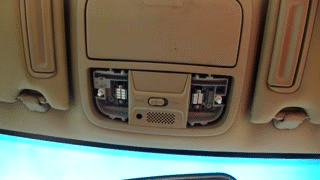

21. With all connections complete and hardware installed once again, unlocking and opening the Accord's doors illuminates both map lights...

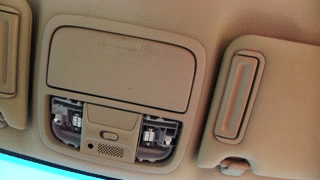

22. The sunglasses holder opens and closes, hopefully as well as when new...


23. The procedure is now complete, and the patient has responded superbly!


With the procedure complete, the next post will provide more information about the repair parts.

Attached Thumbnails 2004 Accord Map Lights & Sunglass Holder fix, with photos-24124313850_97eca27b1a_z.jpg   2004 Accord Map Lights & Sunglass Holder fix, with photos-24124312560_604883f232_z.jpg   2004 Accord Map Lights & Sunglass Holder fix, with photos-ohead-22-lights-.gif   2004 Accord Map Lights & Sunglass Holder fix, with photos-ohead-23-door-close.gif   2004 Accord Map Lights & Sunglass Holder fix, with photos-24337474811_99d99463f1_z.jpg

  #6
Old 01-17-2016, 10:52 AM
othello's Avatar
Newest Of Newbies
Thread Starter
Join Date: Jan 2016
Location: Frederick County, Maryland
Posts: 13
Default

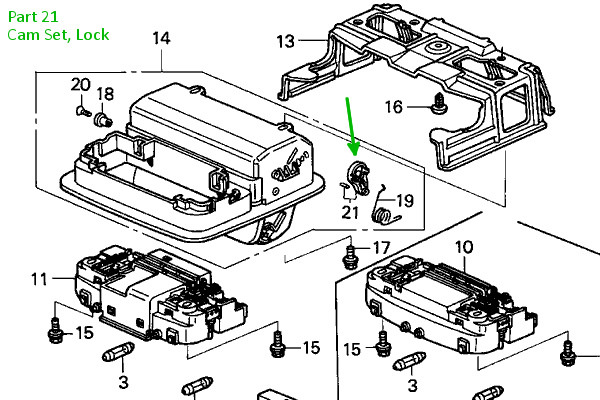

Replacing part 21, the 'Cam Set, Lock' returned the sunglasses holder back to correct operation.



The vendor I used (there are other sources for parts), a full diagram and parts list appears at the following link...

2004 Honda Accord 4 Door EX KA 5AT Interior Light - HondaPartsNow.com

The 'Cam Set, Lock' replacement part is very inexpensive and the buyer would likely pay more for shipping.

Attached Thumbnails 2004 Accord Map Lights & Sunglass Holder fix, with photos-24337607341_e71f856ccb_z.jpg
  #7
Old 01-17-2016, 10:54 AM
othello's Avatar
Newest Of Newbies
Thread Starter
Join Date: Jan 2016
Location: Frederick County, Maryland
Posts: 13
Default

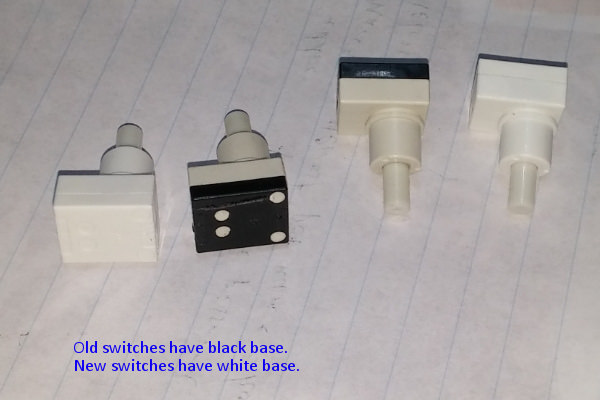

The replacement switches are not separate items on the Honda parts list. Fortunately, the switches are available from a few retail sources.



My purchase of SPED210200 switches came from the following web site ...

www(dot)mouser(dot)com/ProductDetail/ALPS/SPED210200/?qs=%2fha2pyFadujxbTjVYNFXhnXvZir2X4WKQulzrDSDL2gt zlfYnNfLHA%3d%3d

... and required about a week for processing and shipping. As with the cam lock, shipping cost more than the product itself. The switch operates quite silently. I was expecting a slight metallic click while operating the switch, but heard none.

With the 'procedure' now complete and the 'patient' discharged, best wishes if you attempt the same!

Attached Thumbnails 2004 Accord Map Lights & Sunglass Holder fix, with photos-23793128513_cbe924b46d_z.jpg

Last edited by JimBlake; 01-18-2016 at 10:26 AM. Reason: active link
  #8
Old 01-18-2016, 10:29 AM
JimBlake's Avatar
Super Moderator
Join Date: May 2006
Location: Wisconsin
Posts: 17,518
Default

Nice write-up. I'm going to move it into the "DIY" section which we use as a kind of library of instructions.

(I modified the active link so it isn't active but can be copy-pasted into a browser)

  #9
Old 01-18-2016, 07:09 PM
poorman212's Avatar
Super Moderator
Join Date: May 2010
Location: Youngsville, NC
Posts: 11,819
Default

Thanks Jim....was thinking the same about moving it.

"Othello" - can I ask the the general price of the map light switches? I only ask as I'm trying to decide if I want to fix one of my map lights in the 07 Pilot I have. I found that Dorman offers them - PN 924-798

  #10
Old 01-18-2016, 08:25 PM
othello's Avatar
Newest Of Newbies
Thread Starter
Join Date: Jan 2016
Location: Frederick County, Maryland
Posts: 13
Default

Originally Posted by poorman212 View Post
Thanks Jim....was thinking the same about moving it.

"Othello" - can I ask the the general price of the map light switches? I only ask as I'm trying to decide if I want to fix one of my map lights in the 07 Pilot I have. I found that Dorman offers them - PN 924-798
Othello (cat in avatar)... Steve (human)... One of us is smarter. The other types faster.

The map light switch purchase unit price was under a dollar. The vendor is now out of stock but apparently has an order coming in. The shipping cost was very reasonable, but still far more than the unit price. The total was about ten dollars, delivered.

I was surprised to see the very low unit price, but it tipped the scales for going ahead and attempting the repair. From prior posts on the subject, I wasn't 100% sure whether the switch was the problem. But the cost of finding out was so low, the decision was fairly easy. Removing the base from the console assembly and tracing the conductors, which are right out in the open, I concluded the switch was the most likely potential failure point.

Not surprisingly, I was very pleased that minimal expense and unexpectedly little time corrected both issues (map lights, sunglasses door) in the console assembly.
