Honda SL3 bypass module

Thread Tools

Search this Thread

Old Jan 25, 2015 | 11:06 AM
  #11
gary85_'s Avatar
Thread Starter
|
Member
Joined: Mar 2014
Posts: 85
From: Central Louisiana
Default

Ok thank you again.

Old Jan 25, 2015 | 12:30 PM
  #12
gary85_'s Avatar
Thread Starter
|
Member
Joined: Mar 2014
Posts: 85
From: Central Louisiana
Default

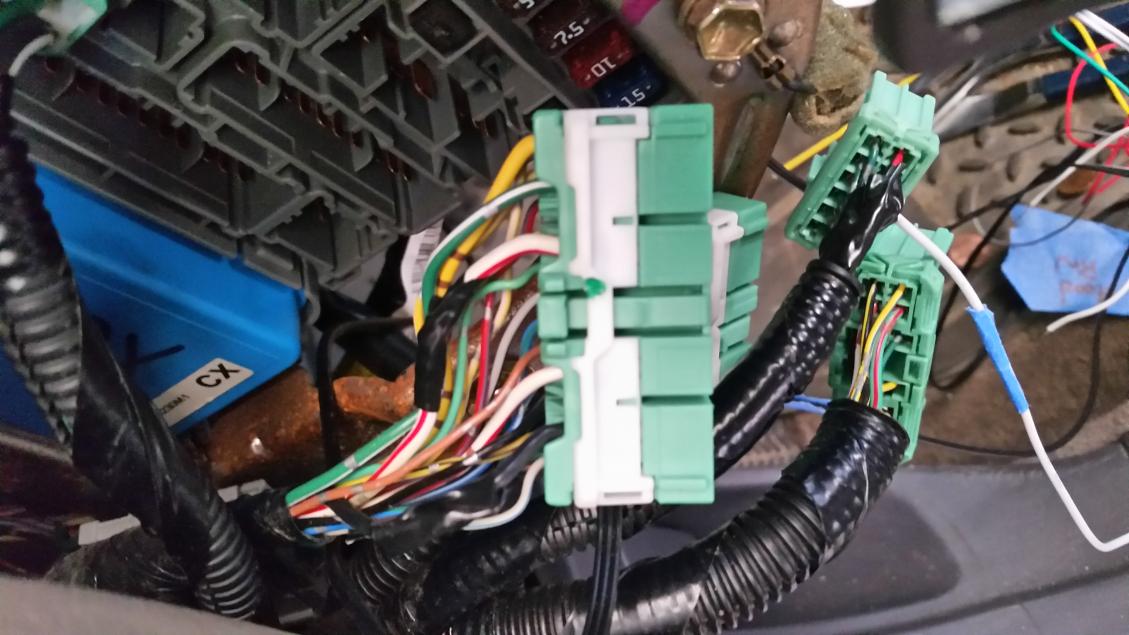

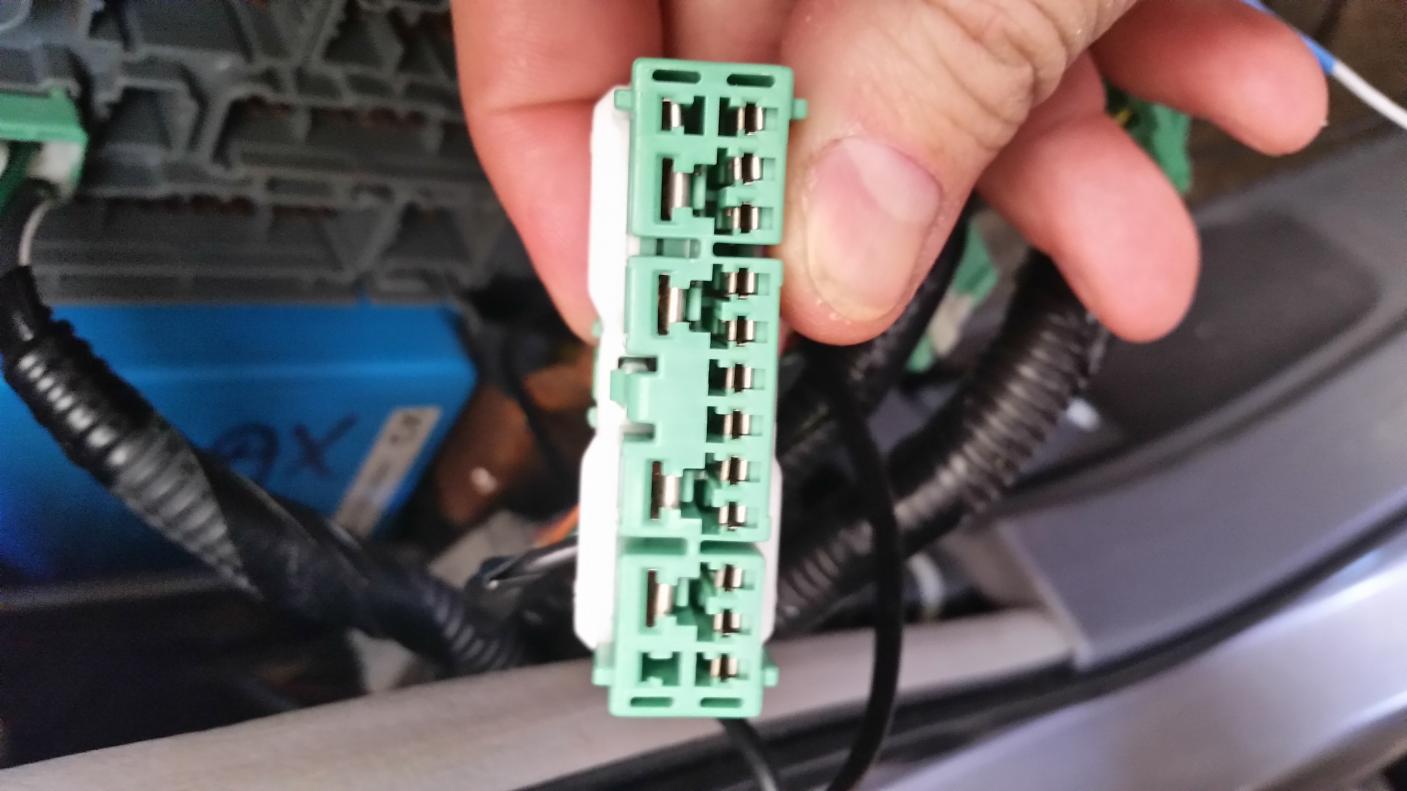

Redbull, this is the pin you described. As you can see the colors are not as you mentioned. I did try tying into to them as you can see by the tape, but to no avail. Would this being a V6 have anything to do with why the location of these wires would be in a different location? Any info you need, just holler.

Attached Thumbnails Honda SL3 bypass module-1422208239846.jpg   Honda SL3 bypass module-1422208162832.jpg
Old Jan 25, 2015 | 12:35 PM
  #13
redbull-1's Avatar
Super Moderator
Joined: Oct 2010
Posts: 7,099
From: United States
Default

Can you show a different picture from the wire side, showing more wires?

Old Jan 25, 2015 | 12:46 PM
  #14
redbull-1's Avatar
Super Moderator
Joined: Oct 2010
Posts: 7,099
From: United States
Default

Your picture in post #12 looks to be the driver's side fuse box. Edit: I see the foot rest pedal, ground bolt that is similar to the driver's side location, and fuses are similar to the driver's side fuse box.

It should be the passenger side fuse box to find the door lock wiring.

Attached Thumbnails Honda SL3 bypass module-fuse-box.jpg

Last edited by redbull-1; Jan 25, 2015 at 12:55 PM.
Old Jan 25, 2015 | 01:12 PM
  #15
gary85_'s Avatar
Thread Starter
|
Member
Joined: Mar 2014
Posts: 85
From: Central Louisiana
Default

WOW, will go check that asap. your wires for the data and synchro were dead on. Finally got the unit to program. You think the trunk pop wire would be over there also. I was not even gonna mess with it, but if I'm over there might as well run it.

Old Jan 25, 2015 | 01:26 PM
  #16
redbull-1's Avatar
Super Moderator
Joined: Oct 2010
Posts: 7,099
From: United States
Default

Originally Posted by gary85_
You think the trunk pop wire would be over there also. I was not even gonna mess with it, but if I'm over there might as well run it.

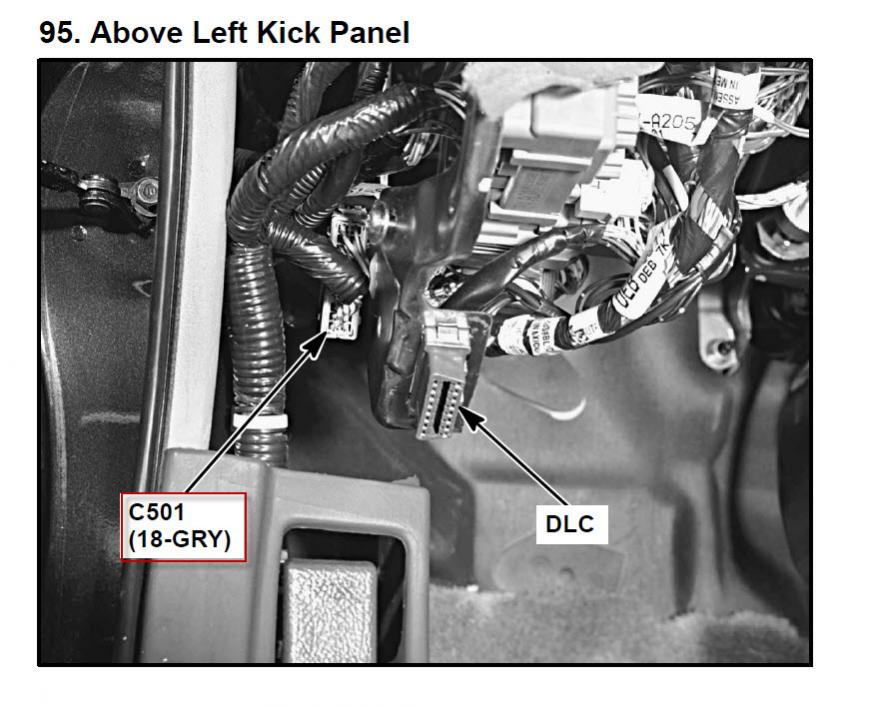

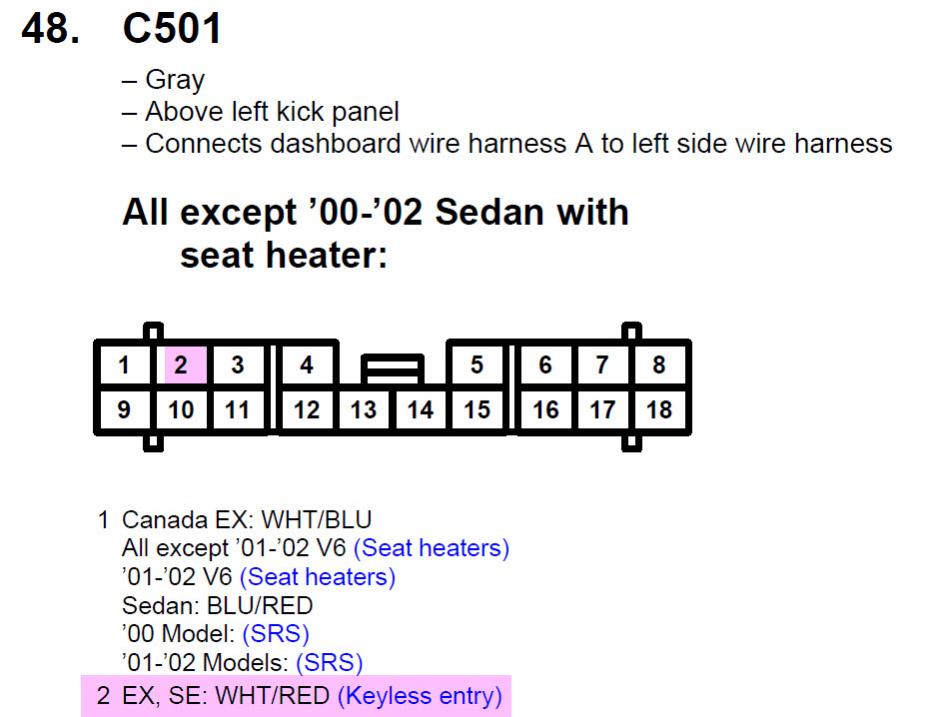

Trunk release is at an 18-P gray connector (C501) on the driver's side.

Terminal no. 2 - Wht/Red wire (+)

Attached Thumbnails Honda SL3 bypass module-c501.jpg   Honda SL3 bypass module-trunk-release.jpg
Old Jan 25, 2015 | 02:43 PM
  #17
gary85_'s Avatar
Thread Starter
|
Member
Joined: Mar 2014
Posts: 85
From: Central Louisiana
Default

PERFECT!!! Just like you said. I've got it all wired up, but upon going through some checks. I'm not getting parking light flashing when locking or unlocking. According to my references it is suppose to be a positive red/black wire in driver side fuse bay. It even showed a picture of it, but apparently it is not right. If you can point this one last thing out for me I will show my gratitude.

Old Jan 25, 2015 | 04:14 PM
  #18
redbull-1's Avatar
Super Moderator
Joined: Oct 2010
Posts: 7,099
From: United States
Default

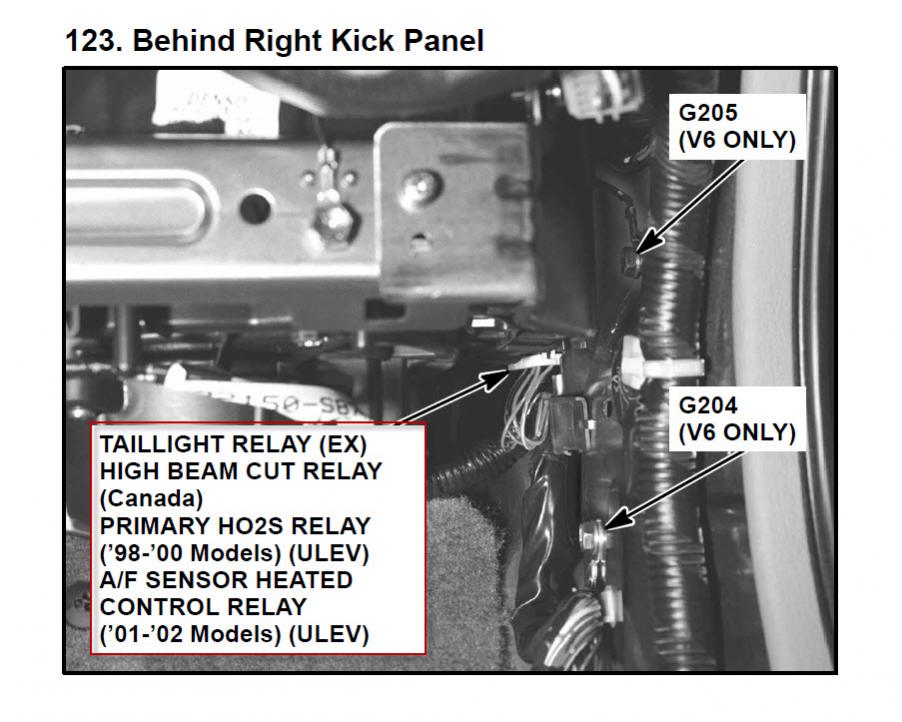

For an EX, you can wire the parking lights at the connector wires to the taillight relay. (EX uses a taillight relay in the circuit.)

Parking Light (+): Terminal No. 1 (Red/Blk wire)
Parking Light (-): Terminal No. 3 (Red/Yel wire)

Attached Thumbnails Honda SL3 bypass module-tail-light-relay.jpg
Old Jan 25, 2015 | 04:27 PM
  #19
gary85_'s Avatar
Thread Starter
|
Member
Joined: Mar 2014
Posts: 85
From: Central Louisiana
Default

Well that will have to wait for another day...lol. I probably should have paid someone to do this job. Won't dare try it on another I don't think. Couldn't have done it without ya, many thanks!!!

Old Jan 27, 2015 | 02:39 PM
  #20
redbull-1's Avatar
Super Moderator
Joined: Oct 2010
Posts: 7,099
From: United States
Default

There's a self-satisfaction when you're able to do-it-yourself without anything getting fubared. Some people like the challenges and learning things along the way.

Note: To flash the parking lights, only one of the wires I listed (either the negative or the positive) probably needs to be hooked up to the alarm/remote system's respective parking light wire.

  • The negative wire is before the taillight relay, and will energize the relay coil to allow power through to the parking lights.
  • Whereas, the positive wire is after the taillight relay; so, most likely power from the alarm system will provide power without the need to go through the taillight relay.
It's should probably only be just a matter of choice.
