Steering Wheel Control
#11
Mod/Admin,

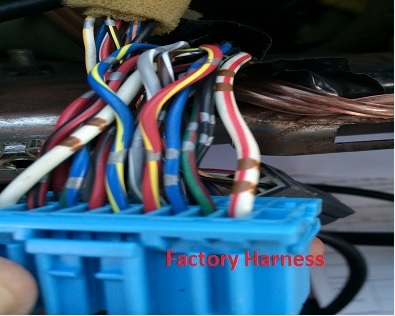

Please correct if I'm wrong for 2002 Honda Accord EX V6 sedan factory harness color code. If this is true, you may use this and put in the right forum it could help other who in-need. thx
Note: Number refer to Pin/Slot
Pin:
1. -
2. WHT/RED Power (Switched)
3. GRN/RED Steering Wheel Controls (EX V6)
4. BLU Security
5. RED/YEL + Rear Right Speaker
6. BLU/YEL + Rear Left Speaker
7. RED/GRN + Front Right Speaker/Tweeter
8. BLU/GRN + Front Left Speaker/Tweeter
9. RED/BLK + Interior Lights System
10. WHT/GRN Power (Always on)
11. -
12. -
13. -
14. BLK Ground (EX V6)
15. BRN/WHT - Rear Right Speaker
16. GRY/WHT - Rear Left Speaker
17. BRN/BLK - Front Right Speaker/Tweeter
18. GRY/BLK - Front Left Speaker/Tweeter
19. RED - Interior Lights System
20. BLK Ground
Please correct if I'm wrong for 2002 Honda Accord EX V6 sedan factory harness color code. If this is true, you may use this and put in the right forum it could help other who in-need. thx
Note: Number refer to Pin/Slot
Pin:
1. -
2. WHT/RED Power (Switched)
3. GRN/RED Steering Wheel Controls (EX V6)
4. BLU Security
5. RED/YEL + Rear Right Speaker
6. BLU/YEL + Rear Left Speaker
7. RED/GRN + Front Right Speaker/Tweeter
8. BLU/GRN + Front Left Speaker/Tweeter
9. RED/BLK + Interior Lights System
10. WHT/GRN Power (Always on)
11. -
12. -
13. -
14. BLK Ground (EX V6)
15. BRN/WHT - Rear Right Speaker
16. GRY/WHT - Rear Left Speaker
17. BRN/BLK - Front Right Speaker/Tweeter
18. GRY/BLK - Front Left Speaker/Tweeter
19. RED - Interior Lights System
20. BLK Ground
Last edited by cat2115; 06-11-2014 at 11:00 AM.
#12
For the most part, what you posted is correct.
Pin:
1. -
2. WHT/RED Power (Switched ignition input)
3. GRN/RED Steering Wheel Radio Remote switch input (EX V6)
4. BLU (Security ouput - EX)
5. RED/YEL + Rear Right Speaker
6. BLU/YEL + Rear Left Speaker
7. RED/GRN + Front Right Speaker/Tweeter
8. BLU/GRN + Front Left Speaker/Tweeter
9. RED/BLK + Interior Lights System
10. WHT/GRN Power (Battery input - Always on)
11. -
12. -
13. -
14. BLK Ground G501 (EX)
15. BRN/WHT - Rear Right Speaker
16. GRY/WHT - Rear Left Speaker
17. BRN/BLK - Front Right Speaker/Tweeter
18. GRY/BLK - Front Left Speaker/Tweeter
19. RED - Interior Lights System
20. BLK Ground G502
Pin:
1. -
2. WHT/RED Power (Switched ignition input)
3. GRN/RED Steering Wheel Radio Remote switch input (EX V6)
4. BLU (Security ouput - EX)
5. RED/YEL + Rear Right Speaker
6. BLU/YEL + Rear Left Speaker
7. RED/GRN + Front Right Speaker/Tweeter
8. BLU/GRN + Front Left Speaker/Tweeter
9. RED/BLK + Interior Lights System
10. WHT/GRN Power (Battery input - Always on)
11. -
12. -
13. -
14. BLK Ground G501 (EX)
15. BRN/WHT - Rear Right Speaker
16. GRY/WHT - Rear Left Speaker
17. BRN/BLK - Front Right Speaker/Tweeter
18. GRY/BLK - Front Left Speaker/Tweeter
19. RED - Interior Lights System
20. BLK Ground G502
