can anyone tell me what this connector is for?

Reply Subscribe

Thread Tools

Search this Thread

02-13-2013, 07:49 PM

kayweb

Member

Thread Starter

Join Date: Jan 2013

Location: Olympia, WA

Posts: 185

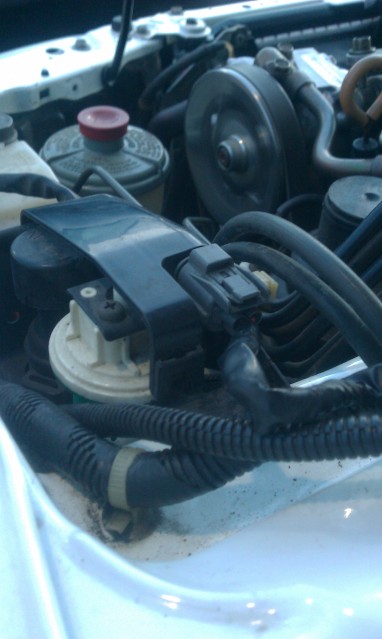

can anyone tell me what this connector is for?

I noticed that it was unplugged, didn't really affect the car's operation, but I'm wondering what its purpose is?
94 LX Sedan

Attached Thumbnails

can anyone tell me what this connector is for?-2u6l6gw.jpg

02-13-2013, 08:22 PM

redbull-1

Super Moderator

Join Date: Oct 2010

Location: United States

Posts: 7,083

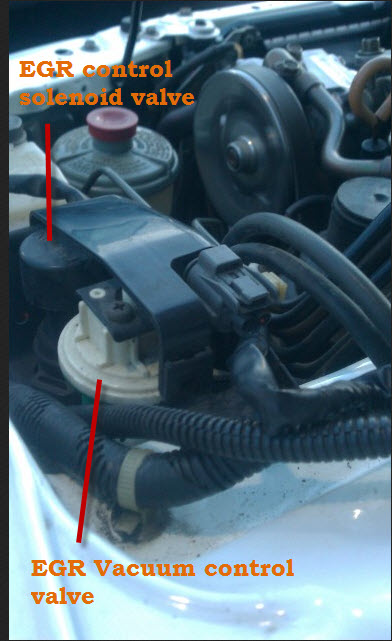

See attached pic. for the EGR components noted.

Info. regarding the EGR system is available in the online service manuals, see the sticky above, "Common DIY and other info. thread."

Attached Thumbnails

can anyone tell me what this connector is for?-egr.jpg

02-13-2013, 08:45 PM

PAhonda

Super Moderator

Join Date: Sep 2006

Location: Houston, TX

Posts: 15,617

That controls the vacuum to the EGR valve (opens/closes the EGR valve).

Has your check engine light been turning on while driving?

02-14-2013, 05:20 AM

kayweb

Member

Thread Starter

Join Date: Jan 2013

Location: Olympia, WA

Posts: 185

PAhonda: sure has, I've been pulling my hair out for weeks trying to hunt down the source of the code 12, and now I feel real dumb.
